2004 Chrysler Crossfire - Headlight Restoration

3M Headlight Lens Restoration System

4/12/2011

4X4 ICON 2000 - 2008 The DVD! - Click here for details!

4X4 ICON 2000 - 2008 The DVD!

Crossfire Maintenance and Modification

Front View with Radar Detector Installed

Time to Renew...

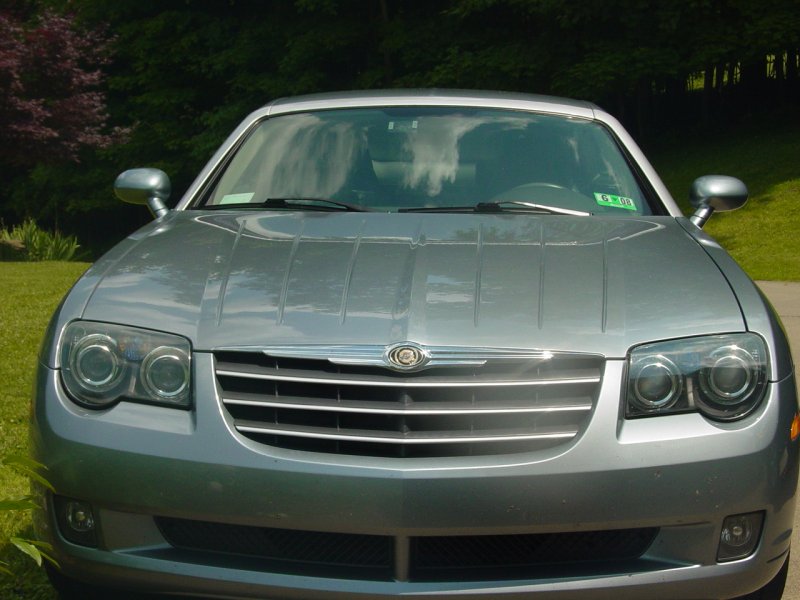

My headlight covers had finally gotten bad enough that something had to be done.  The picture directly above shows the car how it was shortly after I purchased it.

There are two choices - replace the parts for a huge cost (parts) or restore them with an over-the-counter product.

There are lots of automotive products that promise the world and deliver nothing.  I researched this product and learned that it basically polishes the plastic back to a high gloss.  Just like preparing a surface for painting, progressively finer sand-paper is used to remove the scratches from the previous paper and gradually get the surface shiny again.

The 3M Headlight Lens Restoration System kit has the following components:

  • P500 Discs (6)
  • P800 Discs (4)
  • P3000 Pad (1)
  • Compound (small packet)
  • Sponge
  • Drill Pad

The approach to restoring the headlight covers is simple.  Use a drill to carefully rough up and gradually polish the surface.  Following the instructions, I masked off the surrounding area with a few layers of tape to prevent the sand paper from taking paint off.

Then I set aside half of each grade paper for each lens.  I retrieved some extra paper of the same grades from my personal supply to start each round, because my lenses seemed really bad and I wanted to stretch the kit as best I could.

Headlight Lens Restoration System Documentation

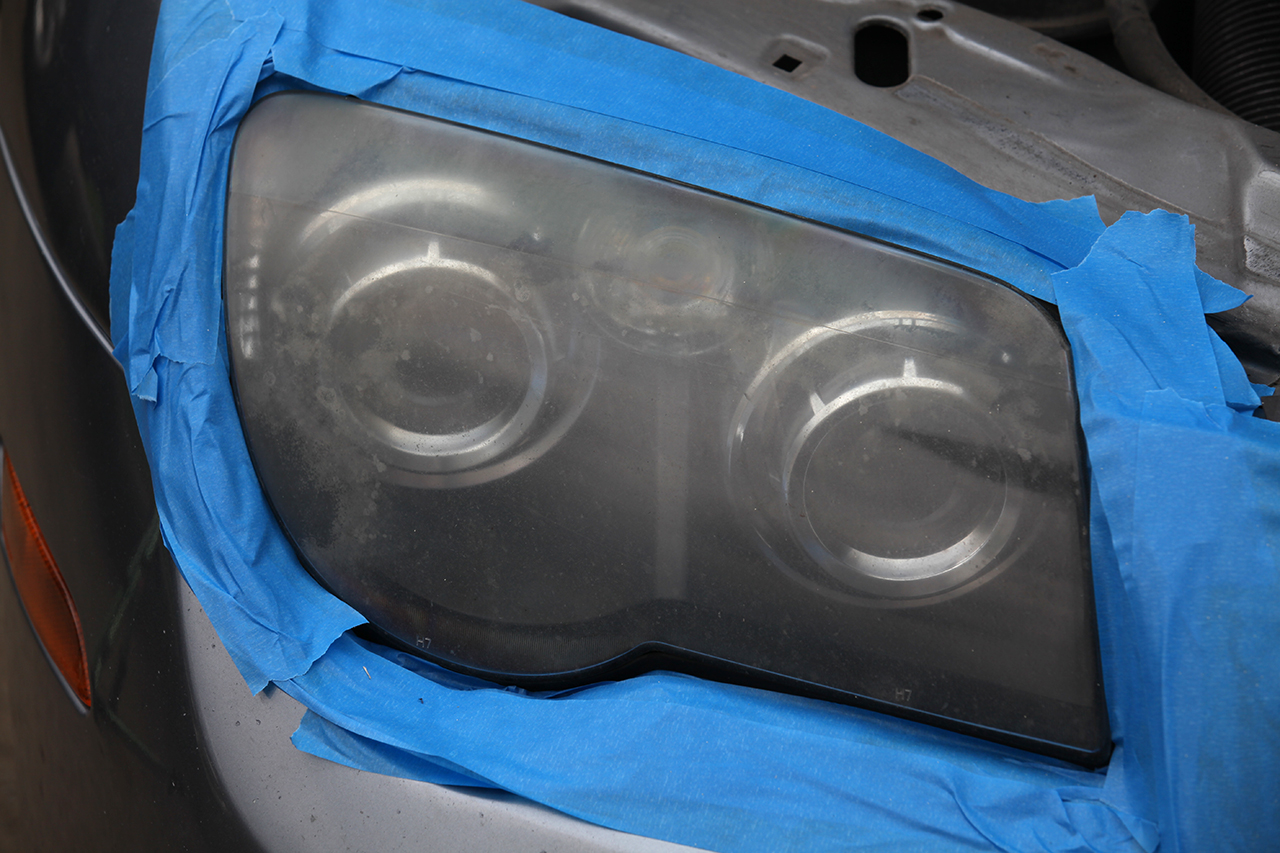

Here is the passenger lens before I started.

2004 Chrysler Crossfire headlight lens before treatment

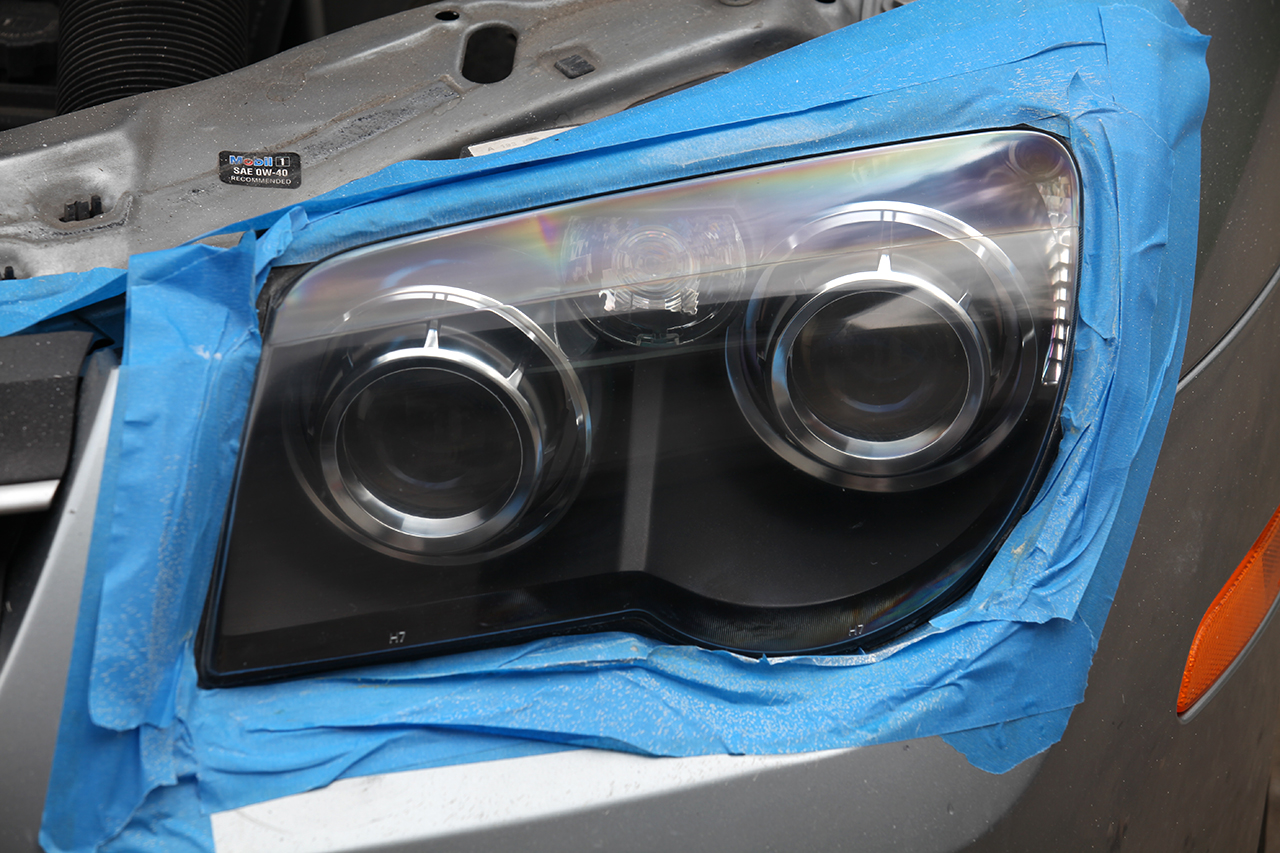

Here is the drivers-side lens after the process was completed.

I knew the process described in the instructions and the supplies provided to do the job would work, but I was still very pleased when I finished - they end result is amazing.  The key is not to run the drill too fast and to follow the instructions to the letter.  If you do, the results are worth the $15 (give or take) and the hour's time you will spend!

Headlight Lens Restoration System Documentation
