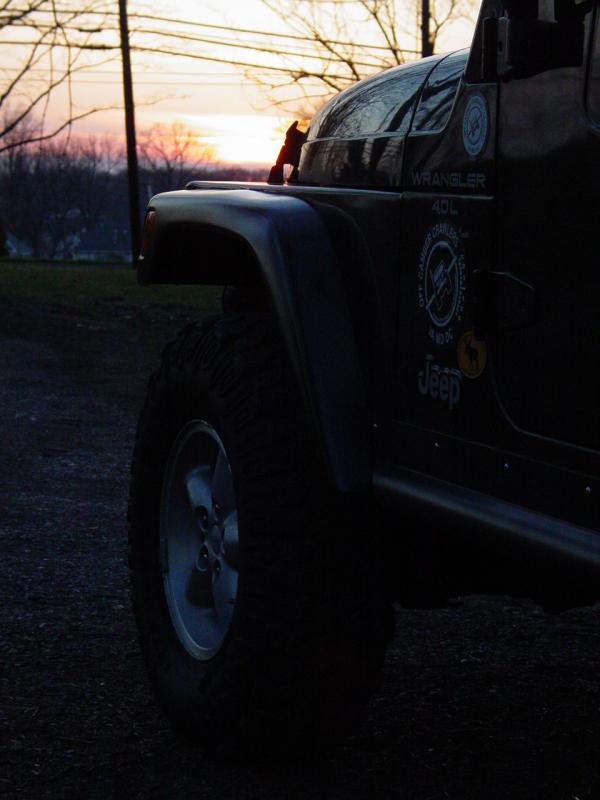

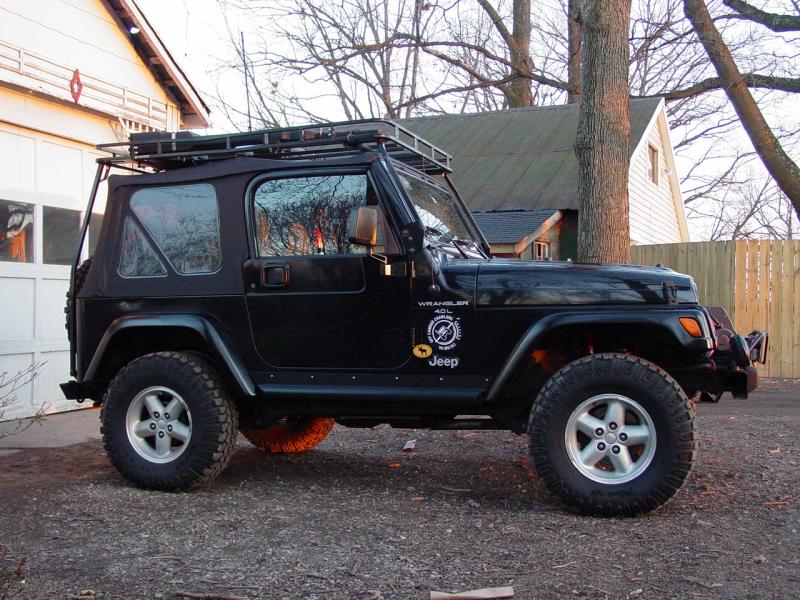

Driver's Side - Click to Enlarge

Krylon
Krylon Fusion

3/28/04

4X4 ICON 2000 - 2008 The DVD! - Click here for details!

4X4 ICON 2000 - 2008 The DVD!

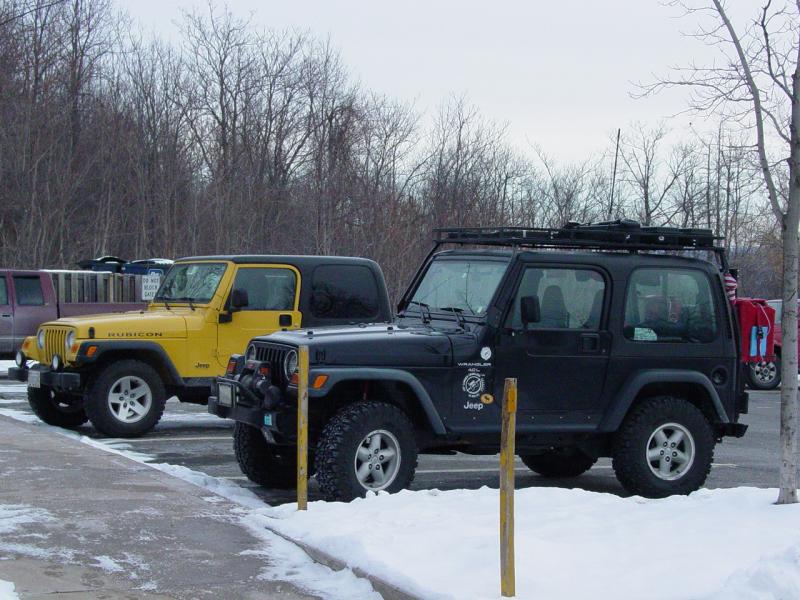

Sideling Hill Parking - Click to Enlarge



4X4ICON.COM 2000-2003  The CD! - Click here for details!

4X4 ICON 2000 - 2003 The CD!

After five years outdoors, the plastic fender flares had gotten pretty faded and dreary (click the picture above to see what I mean...).  There were several stress marks in them, causing green streaks.  The plastic had gotten gray and really didn't look very good - especially when contrasted against the black body.

There are several ways people deal with this.  One approach involves applying heat from a heat gun, just hot enough to cause the plastic to turn black again, but not so hot as to cause it to melt completely.  I have reservations about this approach.  Most plastics loose their ability to bend and recover when exposed to heat.  The color might turn back to black, but I suspect the life of the flare may be compromised.

There are a variety of paints on the market.  I had considered using one of my favorite paints, Vinyl Color paint for fabrics and vinyl.  But I was reluctant to end up with chipped paint, or any variety of problems that comes with painting flexible plastic with paint meant for a stable surface.  Even though the vinyl paint is pretty rugged, I just wasn't ready to use it.

Krylon Fusion

(This is Satin Black)

Then I heard about Krylon Fusion for Plastic.  It claims to bond permanently to plastic, requires no sanding or priming, and dries in a short time.  It sounds too good to be true, so I held off for a while, until I got some feedback from people who used it several months earlier.  The reported results were good, so I grabbed a few cans and made plans to paint my flares.   I ended up only needing one can, but it never hurts to have some on hand.

The ingredients on the can include Tuolene, the same active component in plastic model glue, so I think that pretty much accounts for the "fusion" component...  Anyway, following the instructions, I cleaned and thoroughly dried the fender flares, then wiped them down with an ammonia-based cleaner (Windex) then dried them off again.  Years of applying Armor-All was a vague concern but I would soon see what, if any, effect that had.

Not having any paper masking tape handy I resorted to - what else? - Duct tape.  It was warm out, the paint on the Jeep is in great shape (chip-wise) and duct tape conforms very well to surfaces so works as a good masking tape.  It has the added benefit of being wide.  Where possible, I slid the tape between the flare and the body so that I would have the best protection.  In those areas where the flare was tight, I carefully applied the tape so it did not overlap the flare, and at the same time covered the body.  I pulled a large piece of masking paper off the roll I have and used it as hand-held overspray protection.

I masked and painted each flare, one at a time, working my way around the vehicle.  At first I was very concerned because the gloss black paint was very glossy and didn't really look good.  But almost right away, as it dried, the very fine pebble texture of the flares reappeared and the flares started looking a little more like a new flare is supposed to look.

After the paint had flashed over, within a minute or so, I removed the masking tape completely, being careful not to kick up any dust, and preventing the tape from getting out of my hands and onto the fresh paint.

In about 30 minutes I was done.

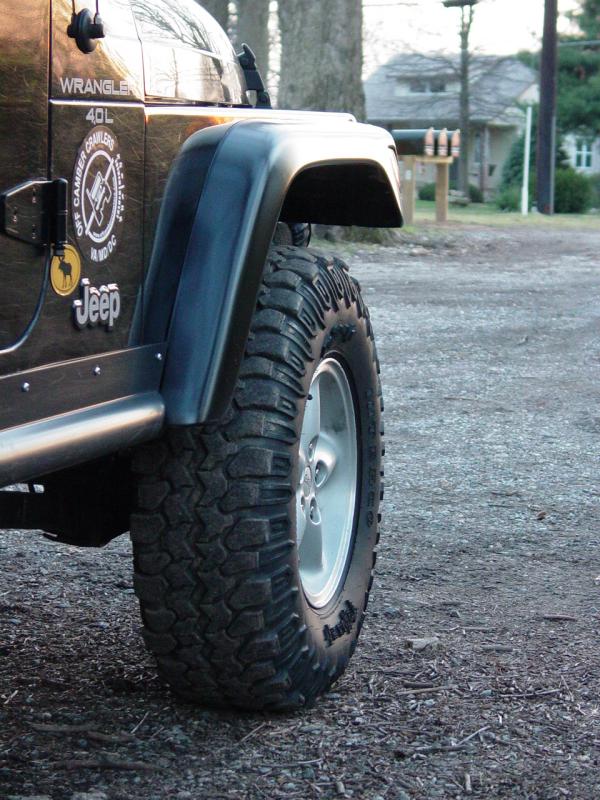

Passenger Side - Click to Enlarge

I have a couple problem spots that will need more attention.  As expected, the years of Armor All did the job and on the front corners, the new paint didn't want to lie down.  It developed something called "fish-eyes".  That's when oils on the painted surface causes the paint to move out in circles away from the problem.  This was not entirely surprising.  I have found that once the paint dries, I can go back over it again and usually, the second coat will cover it.  Sometimes it can be avoided by applying the first couple coats of paint as light dusting.  Anyway, that was the only "paint" problem.



The other problem was related to the abuse the flares have sustained on over 70 trail rides.  One has a deep tracing in it from where it got dragged hard up against a tree.  The other problem was several very small pin prick marks on the leading edge of the rear flares.

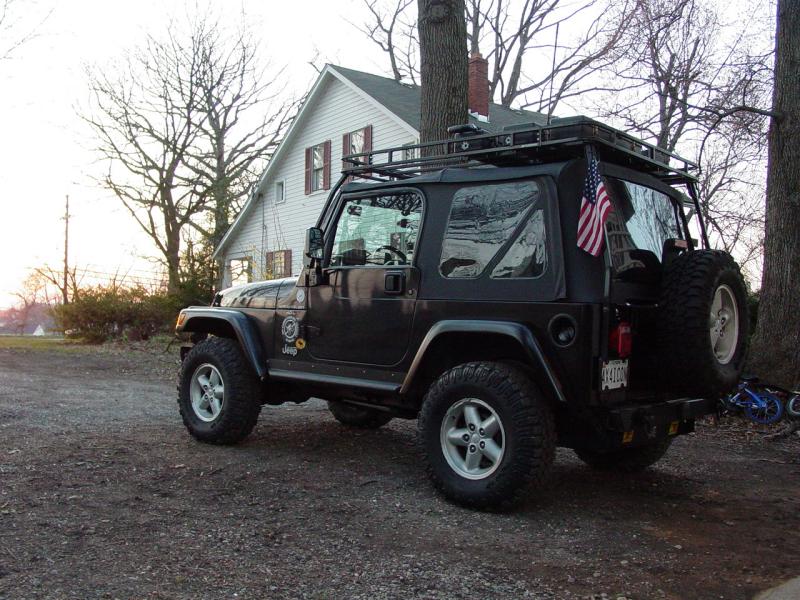

Passenger Side

I think this must be from debris hitting the flares, or maybe tree branches.  You can't see it in this picture (above).

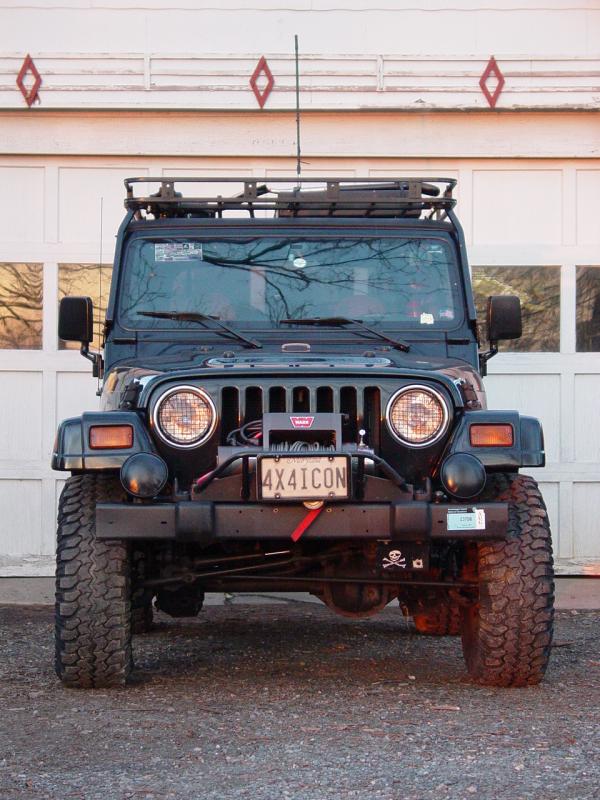

Front
Front
Front

The passenger front flare was somewhat mishapen from being hit with larger trees.

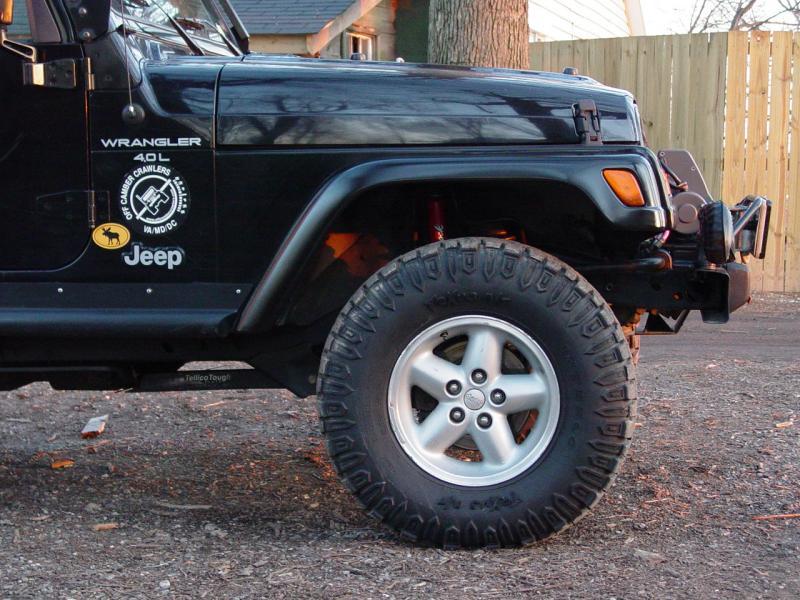

Front Fender

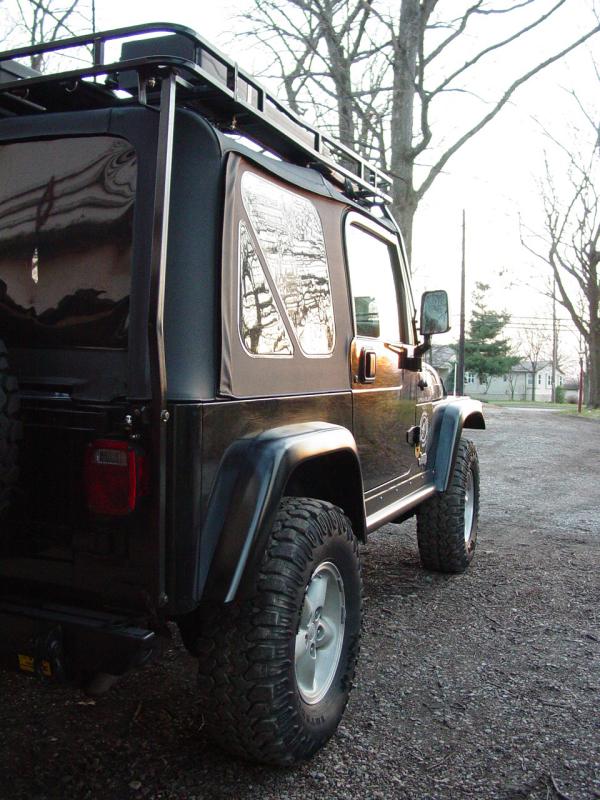

Passenger Side

Passenger Side
Passenger SidePassenger Side

The driver's side front was very slightly mishapen from a very mild encounter with a large tire at full stuff...

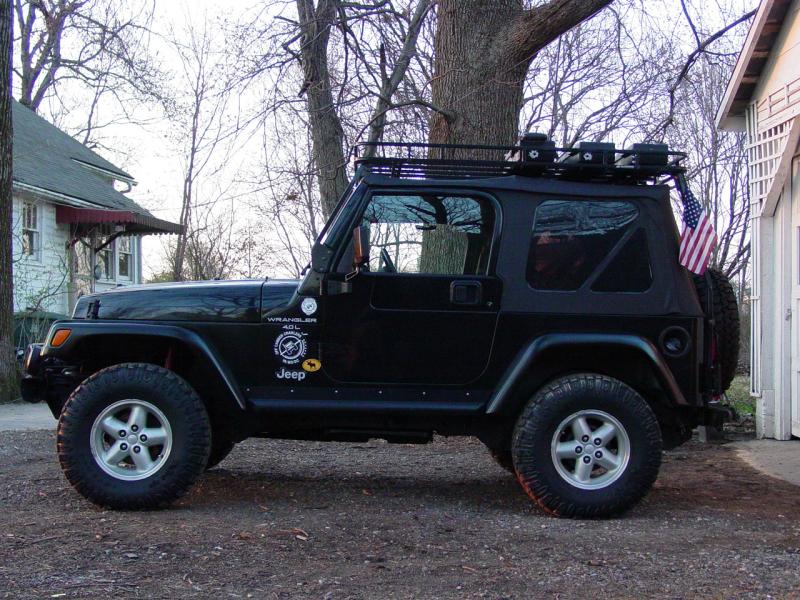

Driver's Side

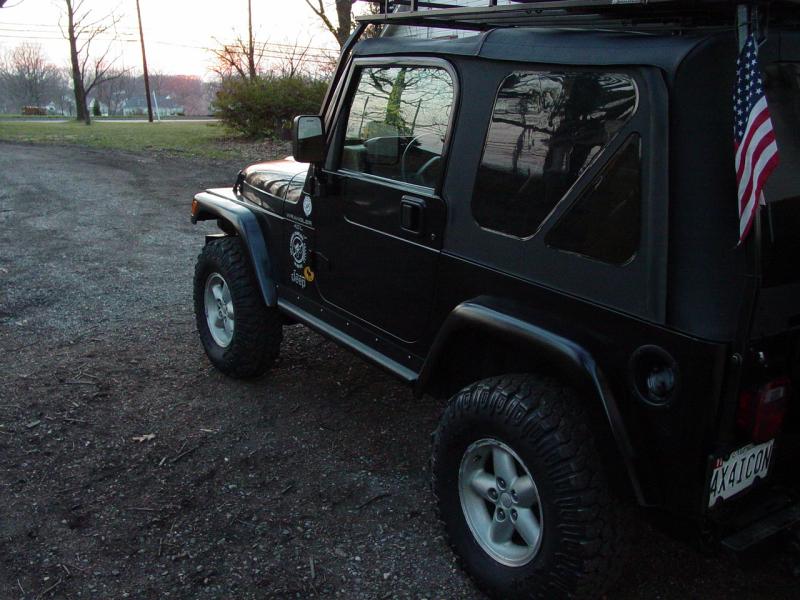

Driver's Side

The paint does not cover these defects, but I guess it's a little like fine leather...

Bottom line is the new finish is a definite improvement.  I like the way they came out.  Now the test is to see how well it holds up to trail rash and anything else that it comes into contact with!

Driver's Side
