Just the facts, Ma'am...
This is the factory unit...
I left it as the
basis for installing an XM radio
and iPod controller.
All I needed to do was add the factory
Auxiliary Audio
Input.

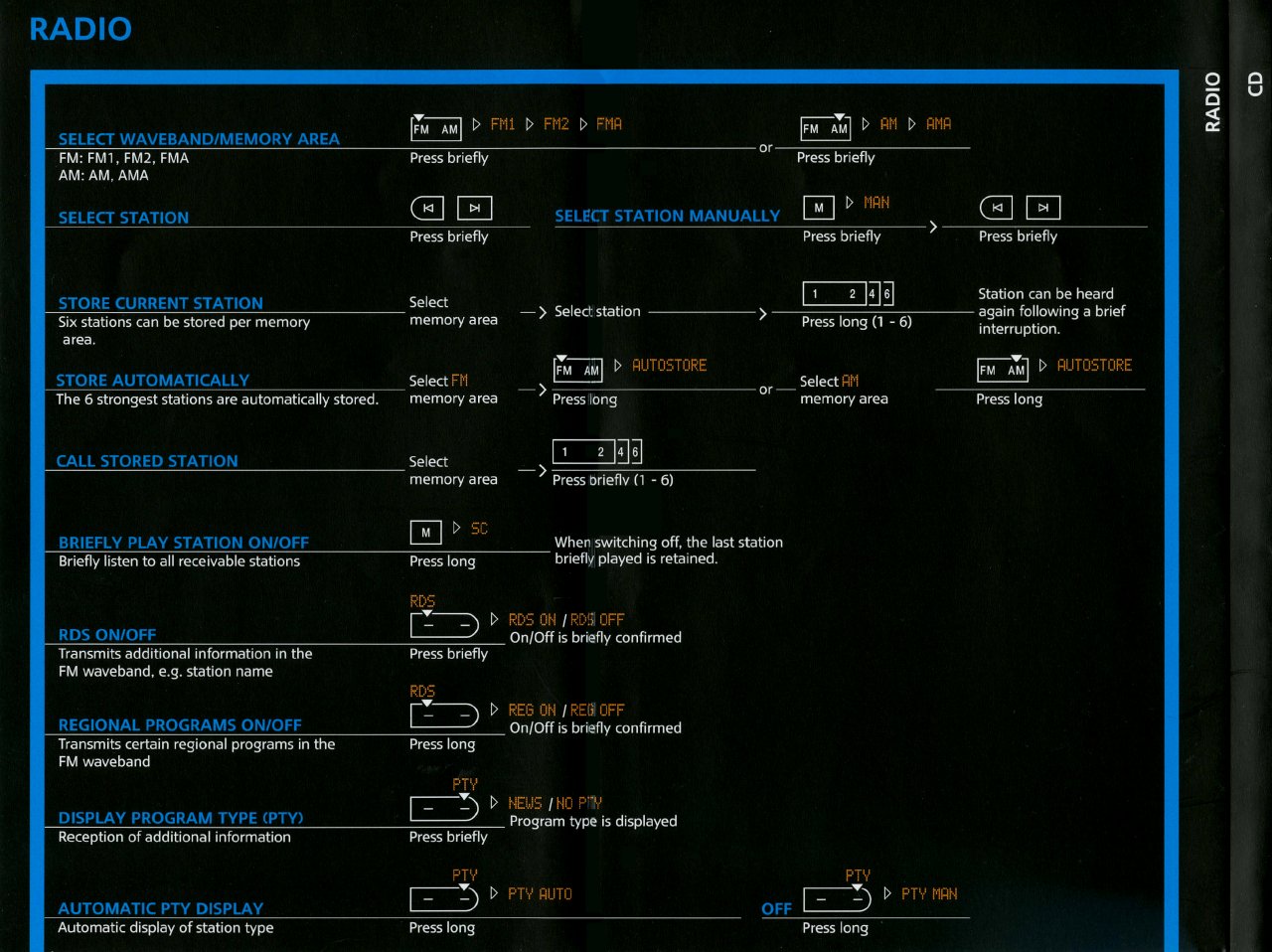

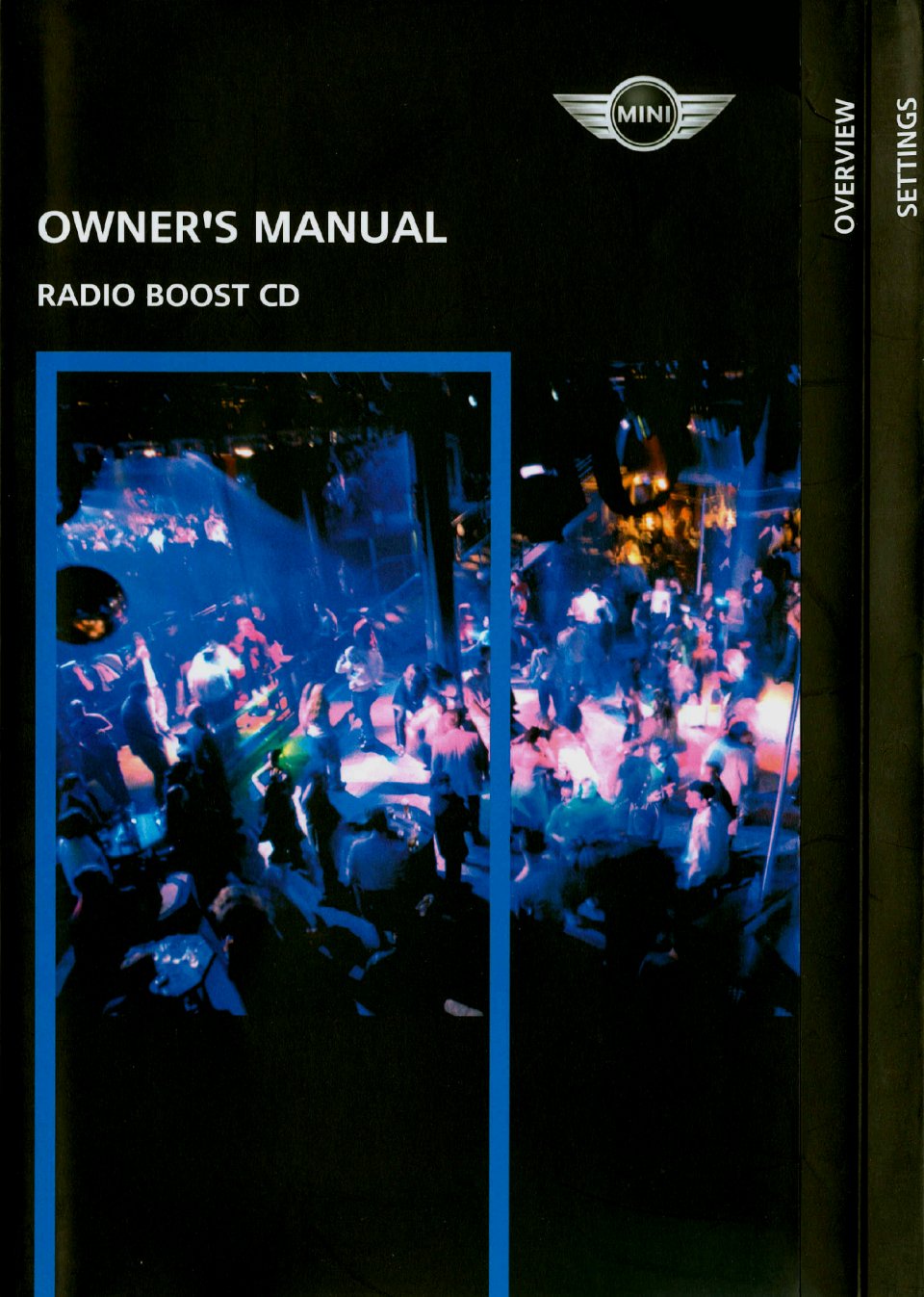

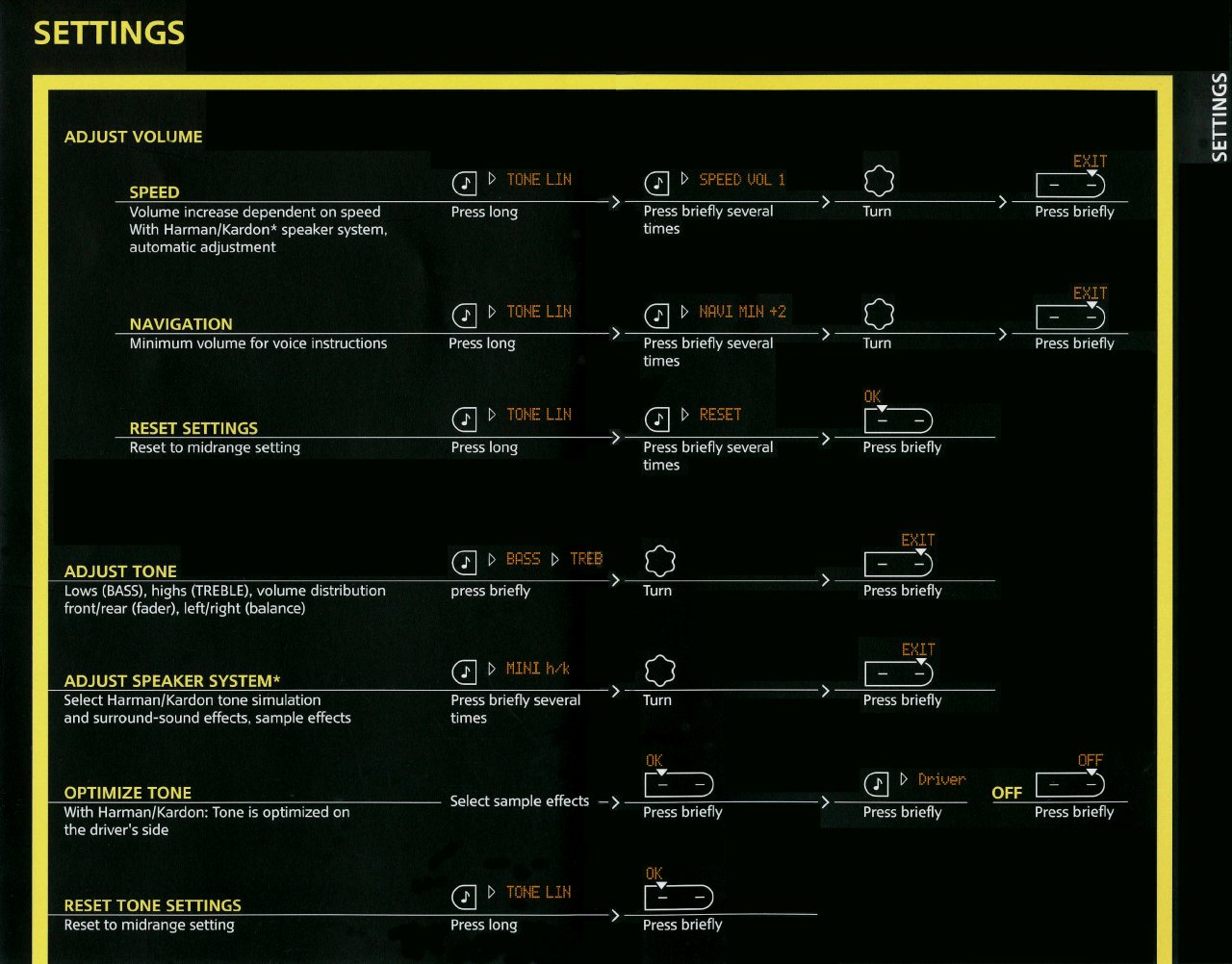

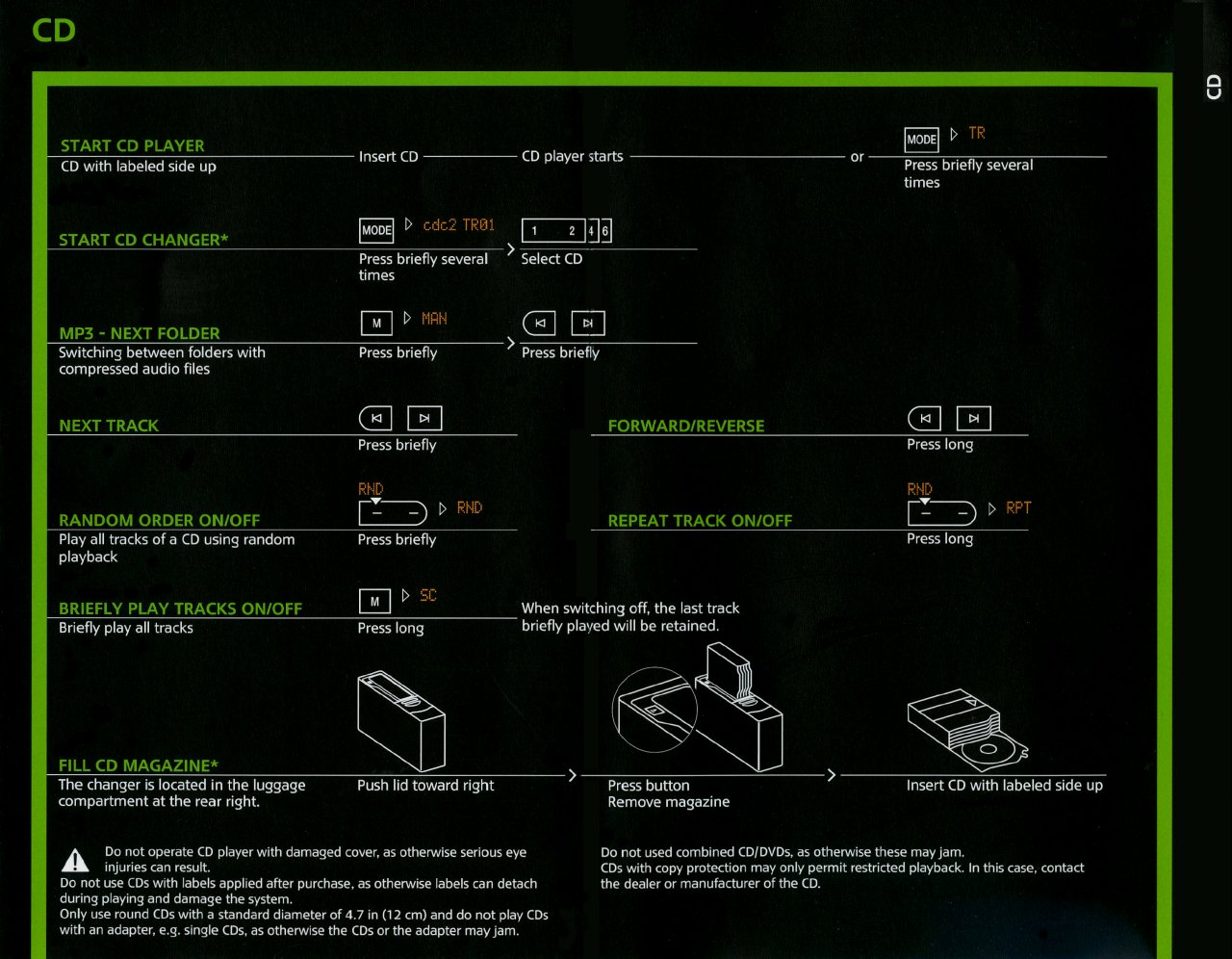

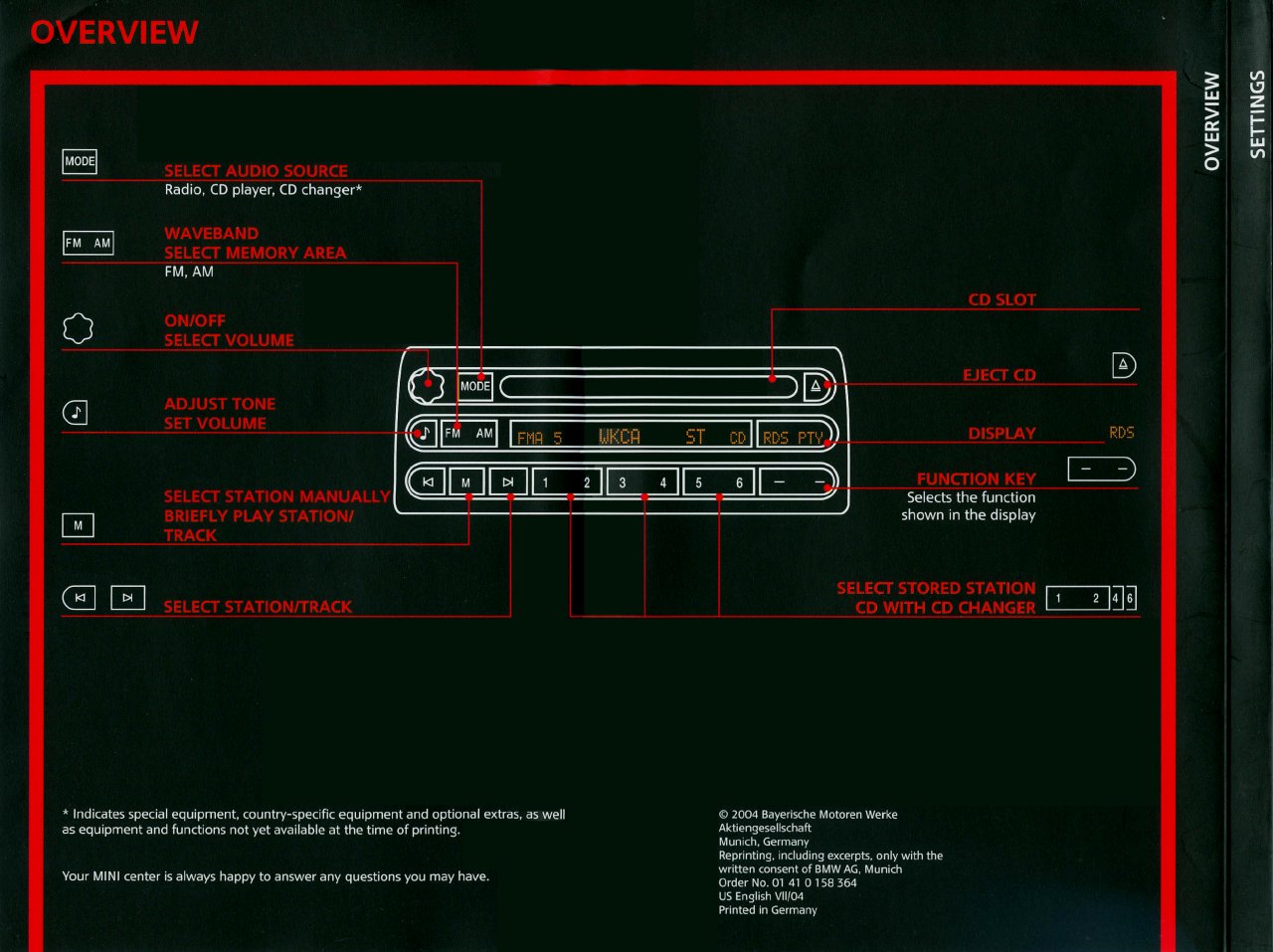

Owners Manual (PDF)
The wiring for this is pretty
straight-forward: Some of the items (XM Radio, Auxiliary Audio
Input, Auxiliary Fuse Panel) may be clicked to access the
related installation write-up.
Here's the
final configuration:
The
components are plugged together as explained in the
instructions, the power leads and ground routed to the
auxiliary fuse panel and chassis. The XM Radio is
plugged into the provided input to the drive + play.
The iPod just plugs in and receives power while sending
music. The heads-up display of the drive + play
provides the visual menu of the iPod which stays put away.
