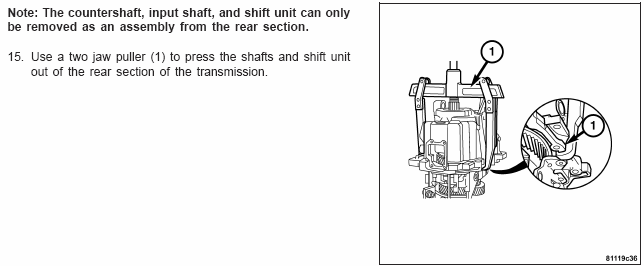

Front Axle and Suspension

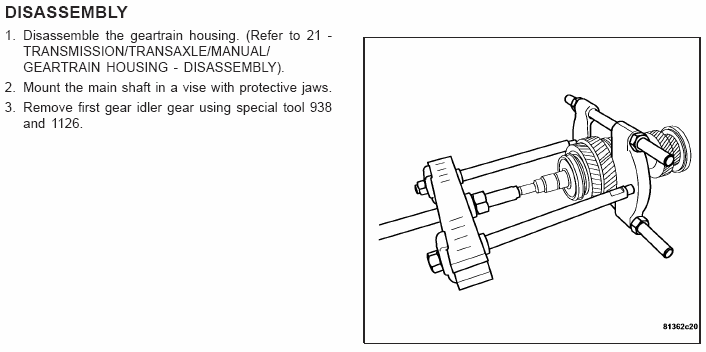

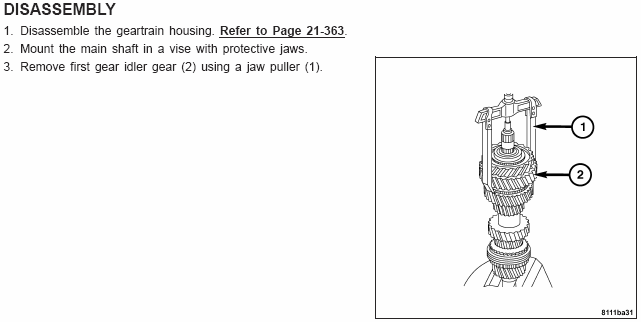

| Tool Number | 938 | |
| Price (USD) | $180.71 | |
| Tool Name | BRIDGE | |
| Description | Use this special tool with the 1130 Splitter to remove various bearings and gears. This tool is also used with 8019 Adapters and 1126 Splitter to press the Shafts and Shift Unit out of the rear section of the Manual Transmission in Crossfire Vehicles. 1994 thru Current |
 |
| Drawer |
4 |
|
| Application |
21-369 Manual Transmission Service Information
21-364 Manual Transmission Service Information
21-432 Manual Transmission Service Information
|
|
Engine

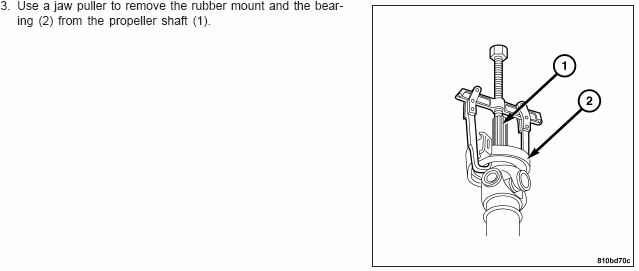

| Tool Number | 1026 | |
| Price (USD) | $51.33 | |
| Tool Name | PULLER | |
| Description | This tool is used to remove the Output Shaft Flange during service procedures on the Manual Transmission in Crossfire vehicles. Also used to remove Harmonic balancers on Chrysler vehicles and on the CVT Transaxle in Caliber vehicles. 1995 thru current. Also see 1023 |
 |
| Drawer |
5 |
|
| Application |
3-31 Propeller Shaft
|
|
Front Axle and Suspension
| Tool Number | 1126 | |
| Price (USD) | $92.49 (est.) | |
| Tool Name | SPLITTER, BEARING/GEAR | |
| Description | This heavy duty Splitter is used in conjunction with the 938 Bridge to remove various bearings and gears. This tool is also used with a Press during Gear Train Service procedures on the Manual Transmission in Crossfire Vehicles. Also used on the T355 transaxle in Caliber vehicles. |
 |
| Drawer |
4 |
|
| Application |
21-369 Manual Transmission Service Information
21-364 Manual Transmission Service Information
21-432 Manual Transmission Service Information
|
|
Front Axle and Suspension
| Tool Number | 1130 | |
| Price (USD) | $92.49 | |
| Tool Name | SPLITTER, BEARING/GEAR | |
| Description | This heavy duty Splitter is used in conjunction with the 938 Bridge to remove various bearings and gears. This tool is also used with a Press during Gear Train Service procedures on the Manual Transmission in Crossfire Vehicles. Also used on the T355 transaxle in Caliber vehicles. |
|
| Drawer |
4 |
|
| Application |
21-369 Manual Transmission Service Information
21-364 Manual Transmission Service Information
|
|
Automatic Transaxle, Front Wheel Drive

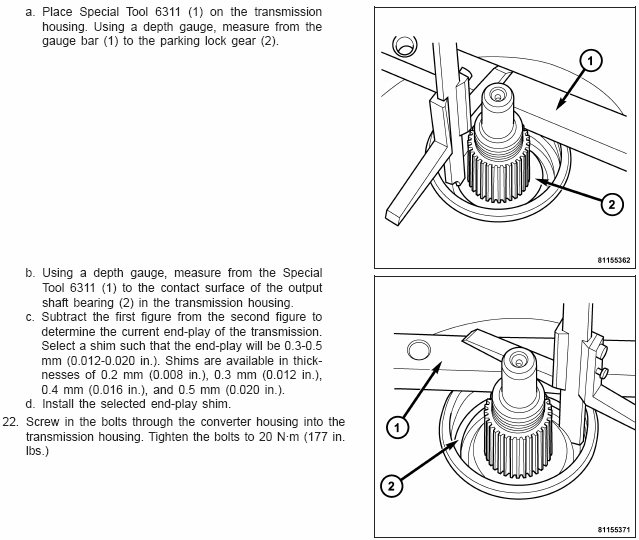

| Tool Number | 6311 | |
| Price (USD) | $81.73 | |
| Tool Name | GAUGE BAR | |
| Description | This special tool is used when measuring the transmission case and gear train in order to select the correct gear train end-play shim in the NAG1, NV5600, 42RE, 46RE and 48RE Transmissions. 1988 thru Current. This tool is also used on the CVT Transaxle. |
 |
| Drawer |
3 |
|
| Application |
21-223 Automatic NAG1 Service Information
|
|
Front Axle & Front Suspension
| Tool Number | 6790 | |
| Price (USD) | $30.29 | |
| Tool Name | TOOL, TRAK LOK TORQUE | |
| Description | Use this special tool along with the C-637CF Slide Hammer to remove the rear Hubs from the 2004 Crossfire Vehicle. Also used on 8 1/4" & 9 1/4" Corporate Axles, 194RBI, 198RBI, 198RBI, 216RBI, 226RBA Axles & T350 Transmissions. |
 |
| Drawer |
5 |
|
Electrical

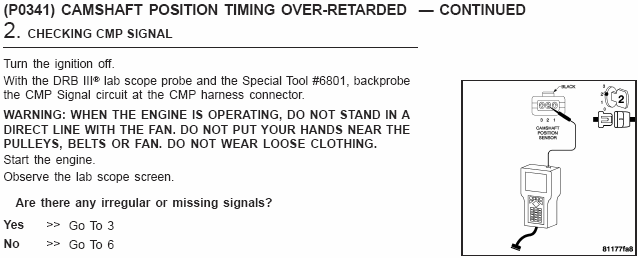

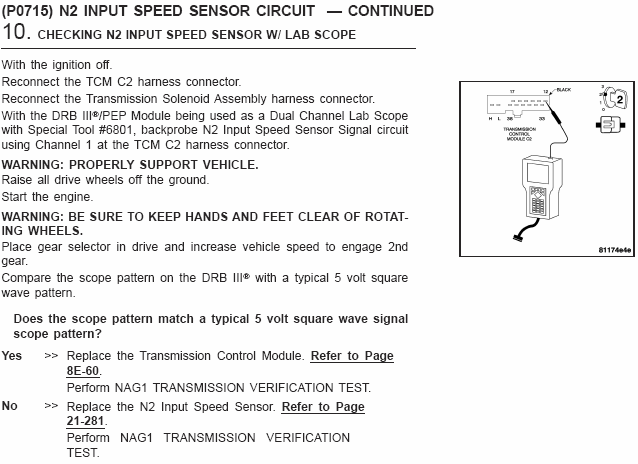

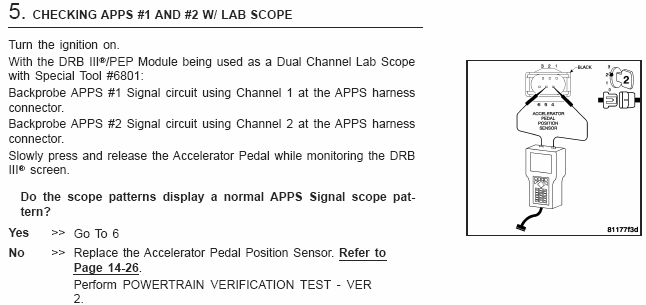

| Tool Number | 6801 | |
| Price (USD) | $33.29 | |
| Tool Name | TERMINAL PROBE | |
| Description | This special tool is used for various Circuit and Connector Diagnostics. This tool is included in the 6807 and 8197A Kits. |
 |
| Drawer |
|
|
| Application |
9-264 Engine - Electrical Diagnostics
9-342 Engine Electrical Diagnosis
21-102 NAG1 Electrical Diagnostics
|
|
Electrical
| Tool Number | 6807 | |
| Price (USD) | $44.27 | |
| Tool Name | TERMINAL TOOLS | |
| Description | These special tools are designed to remove and probe electrical terminals for repair and diagnostics. NOTE: Includes tool numbers 6742 & 6801 - 1994 through current |
 |
| Drawer |
|
|
| Application |
8W-01 Wiring Diagram Information
|
|
Manual Transmission, Rear Wheel Drive
| Tool Number | 8019 | |
| Price (USD) | $35.59 | |
| Tool Name | ADAPTER, SPLITTER | |
| Description | Use these special adapters to connect the 938 Bridge and 1126 Splitter to press the Shafts and Shift Unit out of the rear section of the Manual Transmission in 2004 through Current Crossfire Vehicles. Also see 1126 |
 |
| Drawer |
4 |
|
| Application |
21-369 Manual Transmission Service Information
21-364 Manual Transmission Service Information
|
|
Electrical
| Tool Number | 8821 | |
| Price (USD) | $25.19 | |
| Tool Name | TIRE PRESSURE SENSOR MAGNET | |
| Description | This specially designed magnet must be used with the DRB III to reset the sending units for tire pressure gauges and monitors on all Chrysler vehicles. Supersedes 8192 2000 thru Current |
 |
| Drawer |
|
|
| Application |
22-51 Tires/Wheels Service Information 5. Place a magnet, special tool 8821, at the valve stem for that wheel as directed by the DRBIIIT. If the Program Module function has been chosen, the DRBIIIT will direct you to the left front wheel pressure sensor/transmitter first. |
|
Manual Transaxle, Front Wheel Drive

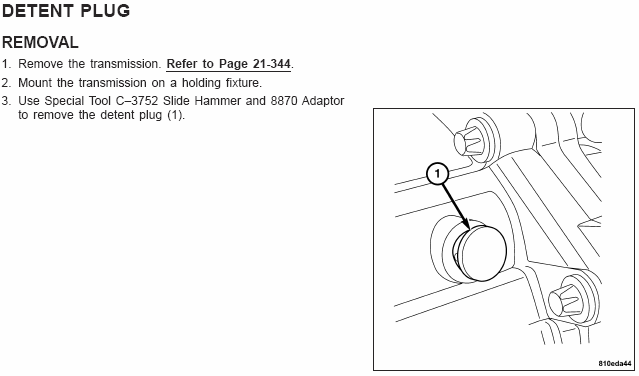

| Tool Number | 8870 | |
| Price (USD) | $29.56 | |
| Tool Name | REMOVER, DETENT PLUG | |
| Description | Use this special tool with the C-3752 Slide Hammer to remove the Detent Plug from the Manual Transmission Case during service procedures on Crossfire Vehicles. Also used to remove the Detent Plug from vehicles equipped with a G288 Manual Transaxle and G238 Manual Transmission. 2003 thru Current |
 |
| Drawer |
3 |
|
| Application |
21-358 Manual Transmission Service Information
|
|

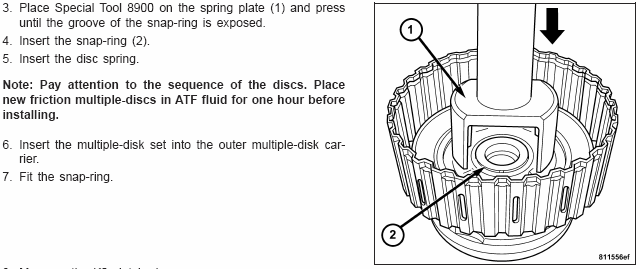

Automatic Transmission, Rear Wheel Drive

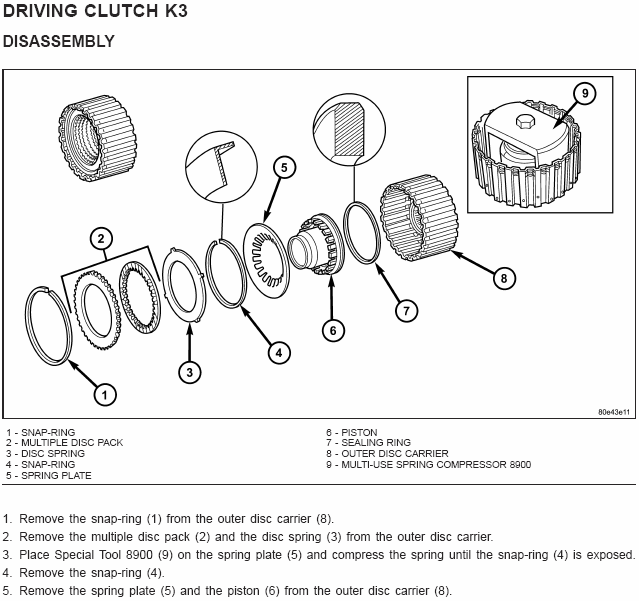

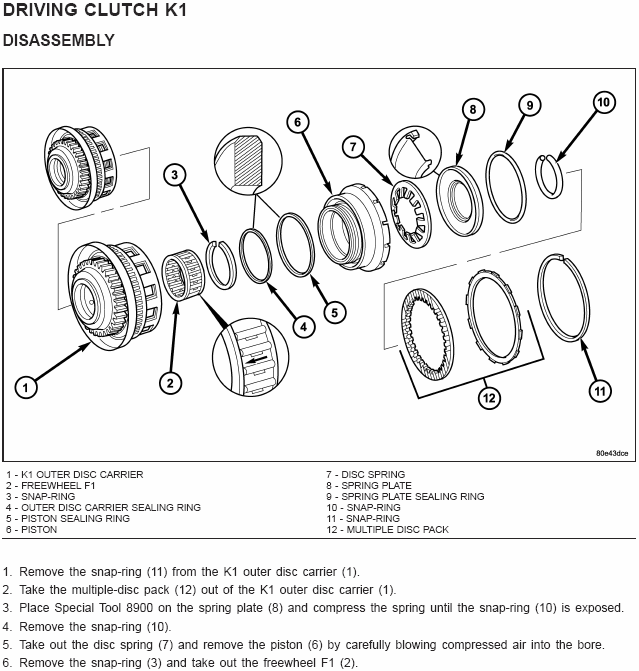

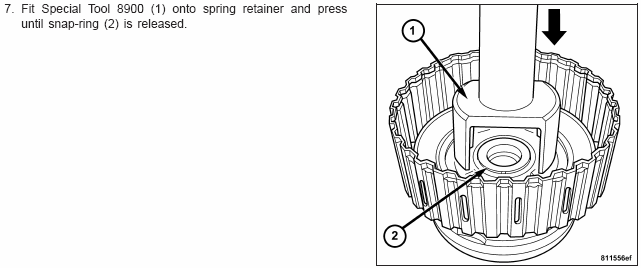

| Tool Number | 8900 | |
| Price (USD) | $481.91 | |
| Tool Name | COMPRESSOR, SPRING | |
| Description | Use this special tool to compress the B1, B2 and K1 thru K3 spring washers to allow the removal of the spring retainer snap-rings in NAG1 Automatic Transmissions. 2003 thru Current |
 |
| Drawer |
3 |
|
| Application |
21-257 Automatic NAG1 Service Information

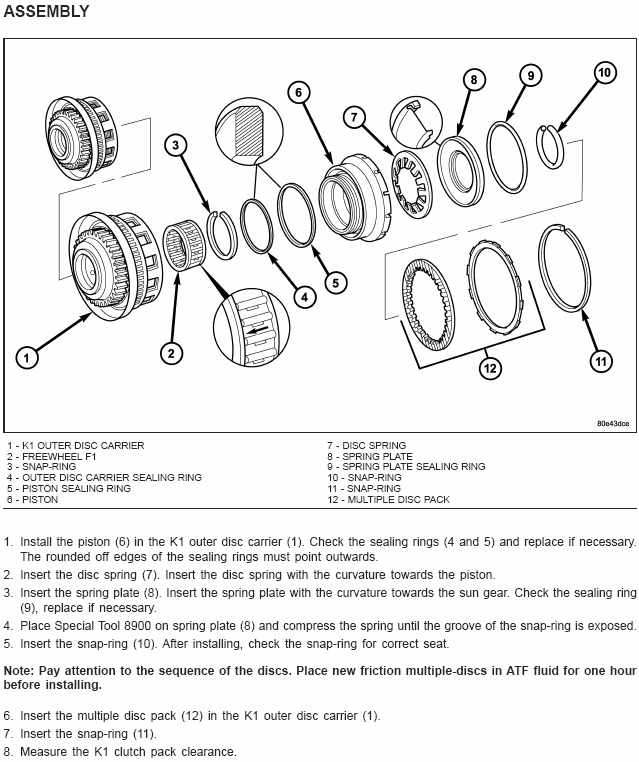

21-258 Automatic NAG1 Service Information
21-262 Automatic NAG1 Service Information
21-265 Automatic NAG1 Service Information
21-266 Automatic NAG1 Service Information
|
|
Automatic Transmission, Rear Wheel Drive

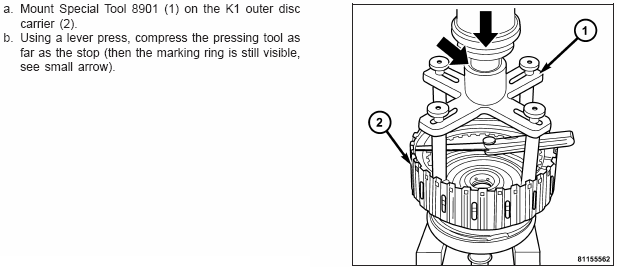

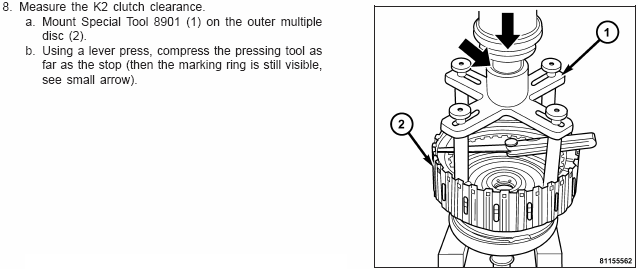

| Tool Number | 8901A | |
| Price (USD) | $155.79 | |
| Tool Name | PRESSING TOOL | |
| Description | Use this revised Pressing Tool to compress the spring washers in the B1, B2 and K1 thru K3 clutches when measuring for proper clutch clearance on all NAG Automatic Transmissions 2003 thru current. NOTE: Supersedes 8901 |
 |
| Drawer |
6 |
|
| Application |
21-259 Automatic NAG1 Service Information
21-264 Automatic NAG1 Service Information
|
|
Electrical

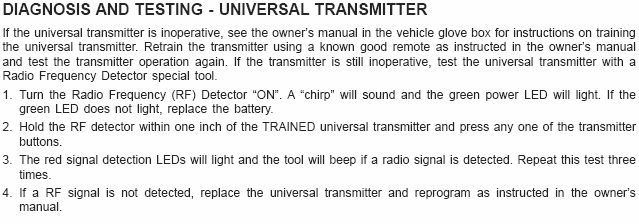

| Tool Number | 9001 | |
| Price (USD) | $252.35 | |
| Tool Name | RF Detector | |
| Description | Use this RF Detector to detect the radio frequency (RF) transmission from an RF based Remote Keyless Entry keyfob, tire pressure sensor (used with 8821 re-learn magnet) & Homelink system. The 9001 is a GO/NO-GO indication of the RF level. |
 |
| Drawer |
|
|
| Application |
8M-2 Message Systems

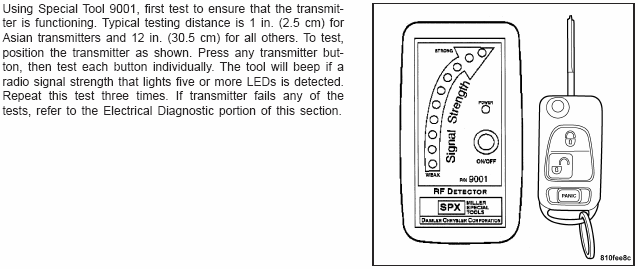

8N-37 Power Locks Service Information
|
|

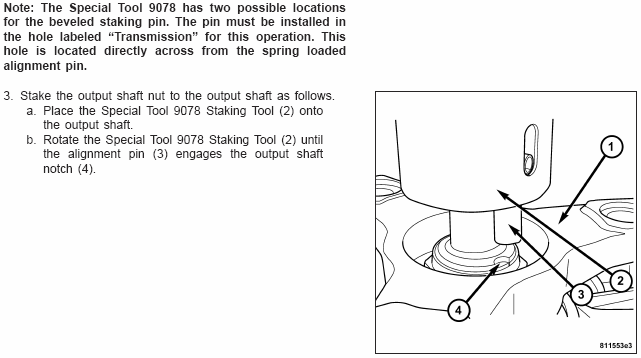

Automatic Transmission, Rear Wheel Drive
| Tool Number | 9078 | |
| Price (USD) | $83.91 | |
| Tool Name | STAKING TOOL | |
| Description | This special tool is used with the C-4171 Drive Handle to stake the Output Flange Retaining Nut into position after the proper torque is obtained on vehicles equipped with the NAG1 Automatic Transmission. 2003 thru Current |
 |
| Drawer |
2 |
|
| Application |
21-225 Automatic NAG1 Service Information
21-357 Manual Transmission Service Information
|
|
Automatic Transmission, Rear Wheel Drive
| Tool Number | 9082A | |
| Price (USD) | $210.45 | |
| Tool Name | REMOVER, BEARING | |
| Description | This special tool is used to remove the output shaft bearing from the NAG1 Automatic Transmission while the output shaft is installed. 2003 thru Current |
 |
| Drawer |
2 |
|
| Application |
21-215 Automatic NAG1 Service Information
|
|
Engine

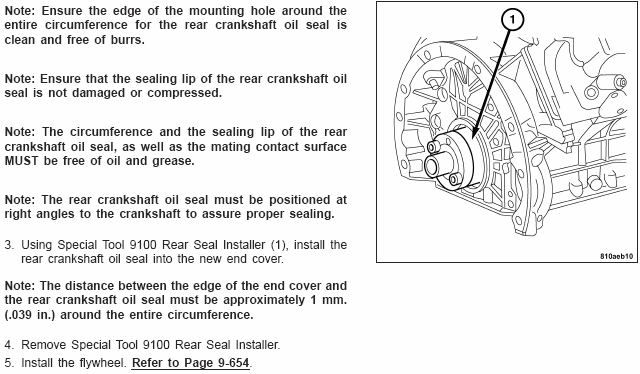

| Tool Number | 9100 | |
| Price (USD) | $456.55 | |
| Tool Name | INSTALLATION TOOL | |
| Description | Use this tool to install the Rear Main Crankshaft Seal to its proper depth in Crossfire Vehicles equipped with a 3.2 Liter Engine. |
 |
| Drawer |
3 |
|
| Application |
9-635 Engine Service Information
|
|
Engine
| Tool Number | 9101 | |
| Price (USD) | $86.52 | |
| Tool Name | SLEEVE | |
| Description | Use this tool with the 9103 Seal Installer to install the Front Crankshaft Seal to its proper depth in Crossfire Vehicles equipped with a 3.2 Liter Engine. |
 |
| Drawer |
1 |
|
| Application |
9-637 Engine Service Information
|
|

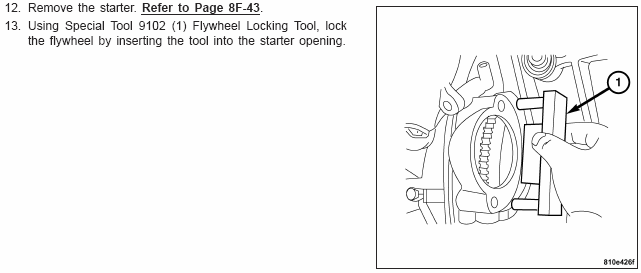

Engine

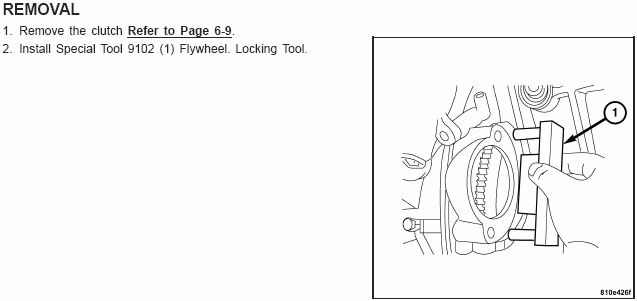

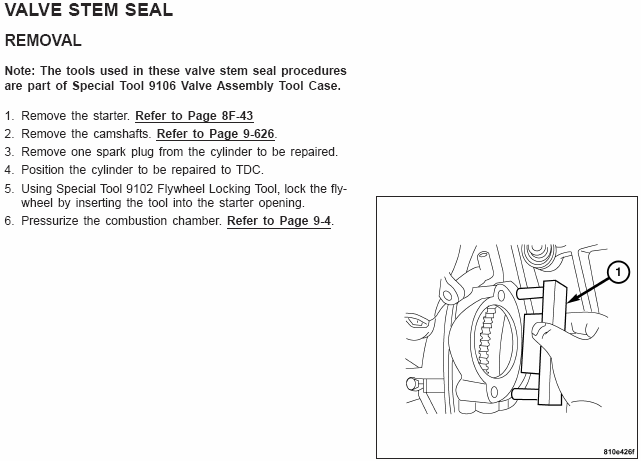

| Tool Number | 9102 | |
| Price (USD) | $88.87 | |
| Tool Name | LOCK, FLYWHEEL | |
| Description | This tool is used to lock the Flywheel in place for various service procedures on 3.2 Liter Engines in the Crossfire vehicles. |
 |
| Drawer |
1 |
|
| Application |
6-22 Clutch
9-627 Engine Service Information
9-651 Engine Service Information
9-653 Engine Service Information
9-685 Engine Service Information
9-699 Engine Service Information
|
|
Engine

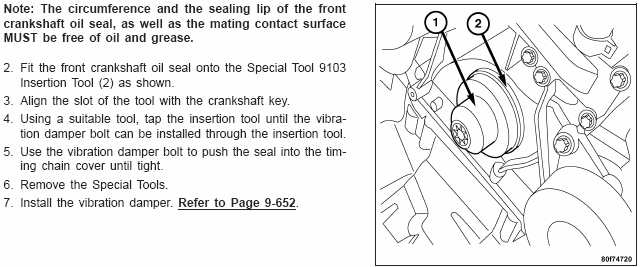

| Tool Number | 9103 | |
| Price (USD) | $93.49 | |
| Tool Name | INSERTION TOOL | |
| Description | Use this tool in conjunction with the 9101 Seal Installers to install the Front Crankshaft Seal to its proper depth in Crossfire Vehicles equipped with a 3.2 Liter Engine. |
 |
| Drawer |
1 |
|
| Application |
9-637 Engine Service Information
|
|

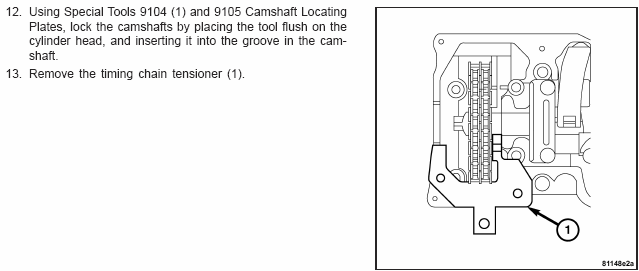

Engine

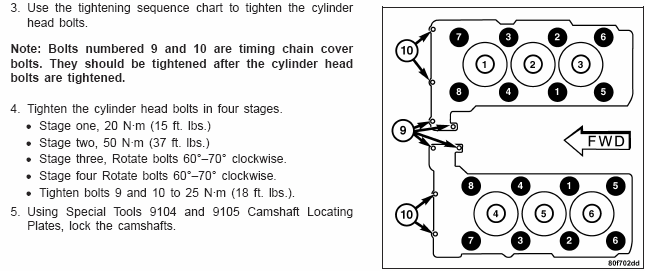

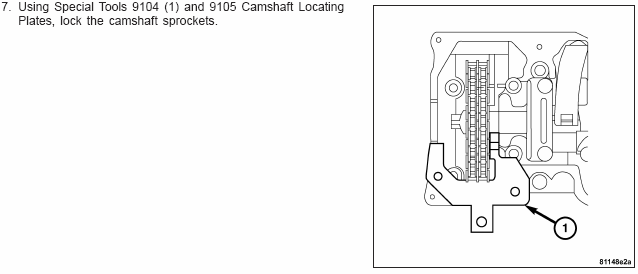

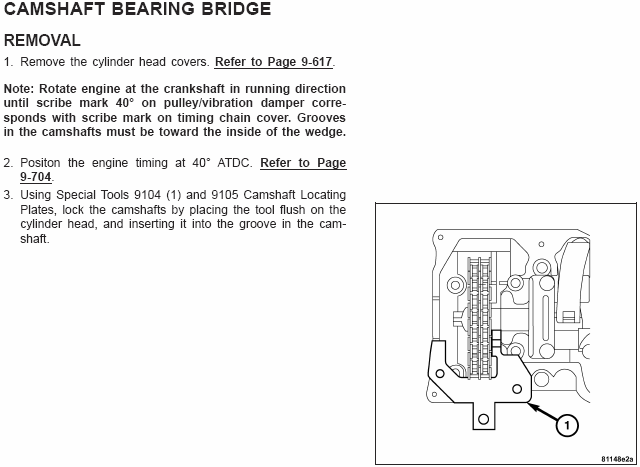

| Tool Number | 9104 | |
| Price (USD) | $49.89 | |
| Tool Name | ARRESTING PLATE | |
| Description | This tool is used to hold the Right Side Camshaft in a 40 degree ATDC position during service procedures on the Crossfire Vehicles equipped with a 3.2 Liter Engine. |
 |
| Drawer |
1 |
|
| Application |
9-612 Engine Service Information
9-615 Engine Service Information
9-619 Engine Service Information
9-622 Engine Service Information
9-696 Engine Service Information
|
|
Engine
| Tool Number | 9105 | |
| Price (USD) | $68.24 | |
| Tool Name | ARRESTING PLATE | |
| Description | This tool is used to hold the Left Side Camshaft in a 40 degree ATDC position during service procedures on the Crossfire Vehicles equipped with a 3.2 Liter Engine. |
 |
| Drawer |
1 |
|
| Application |
9-612 Engine Service Information
9-615 Engine Service Information
9-619 Engine Service Information
9-622 Engine Service Information
9-696 Engine Service Information
|
|

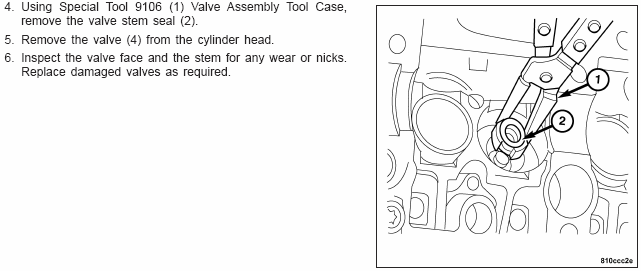

Engine

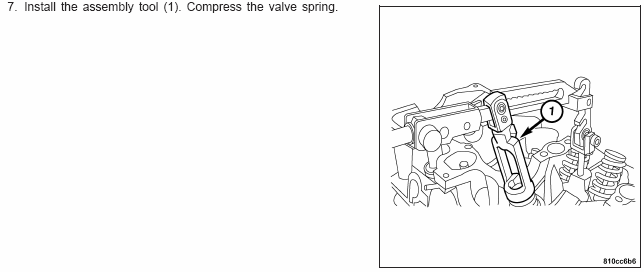

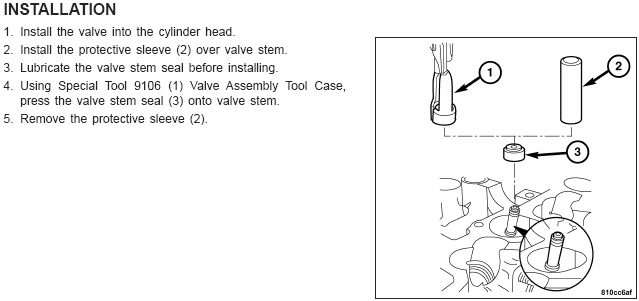

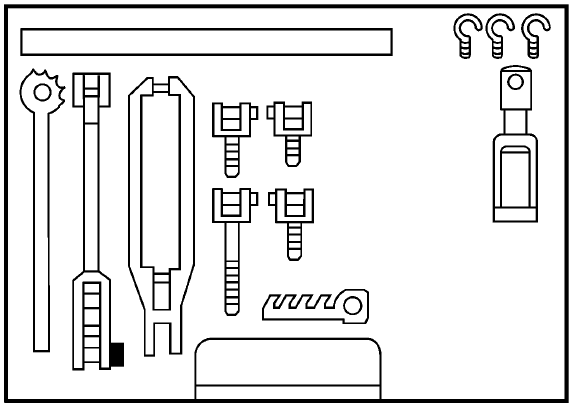

| Tool Number | 9106 | |
| Price (USD) | $534.92 | |
| Tool Name | VALVE SPRING COMPRESSOR KIT | |
| Description | Use this tool to service Valve Train Components in Crossfire Vehicles equipped with the 3.2 Liter Engine. NOTE: Cylinder Head on. |
  |
| Drawer |
5 |
|
| Application |
9-627 Engine Service Information
9-631 Engine Service Information
9-632 Engine Service Information
|
|

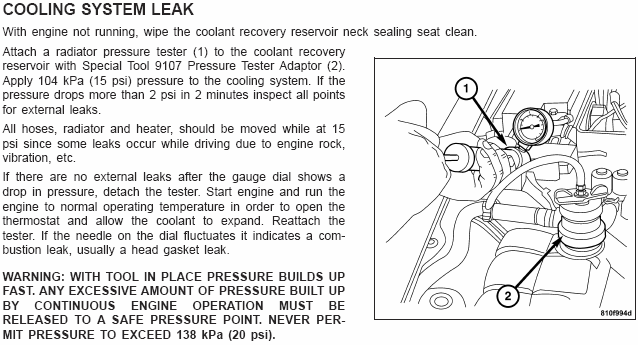

Cooling System & A/C
| Tool Number | 9107 | |
| Price (USD) | $102.49 | |
| Tool Name | ADAPTER, COOLANT RESERVOIR | |
| Description | This special Radiator Pressure Test Adapter must be used with the 7700 or equivalent Pressure Test Kit to perform cooling system diagnostics on Crossfire Vehicles. |
 |
| Drawer |
1 |
|
| Application |
7-13 Cooling
9-611 Engine Service Information
|
|
Convertible Top

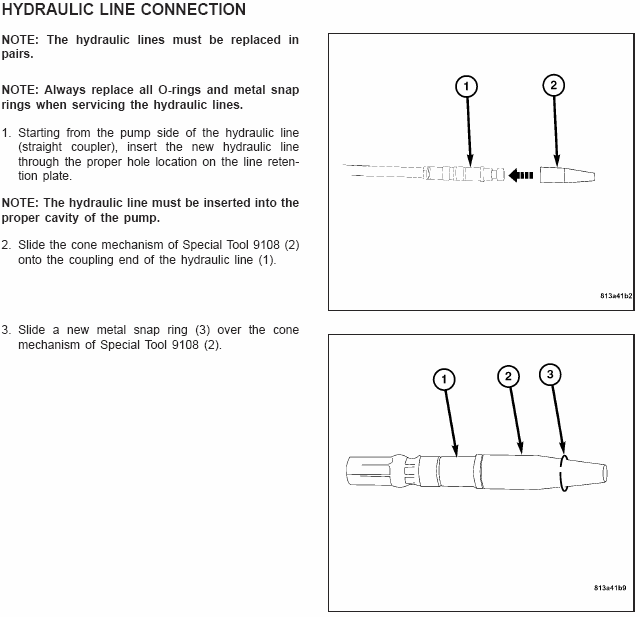

| Tool Number | 9108 | |
| Price (USD) | $33.55 | |
| Tool Name | AID, ASSEMBLY | |
| Description | Use this new special tool to assemble the convertible top hydraulic line retaining clip to the hydraulic line on the New 2005 Crossfire Convertible. |
 |
| Drawer |
1 |
|
| Application |
23-624 Convertible Top
|
|
Engine

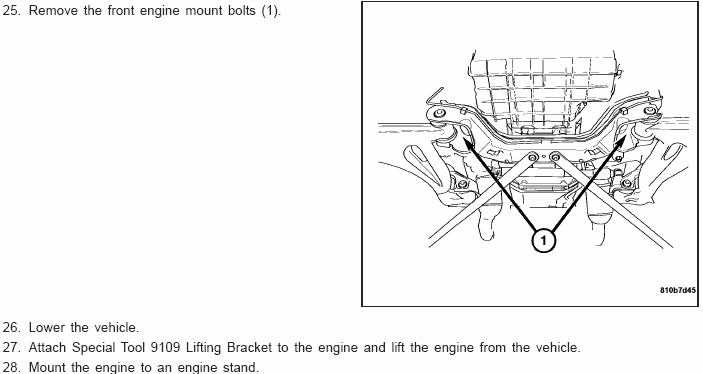

| Tool Number | 9109 | |
| Price (USD) | $28.47 | |
| Tool Name | BRACKET, LIFTING | |
| Description | This new bracket is used in conjunction with the existing lifting brackets, an engine lifting bridle and engine hoist to remove and install the Supercharged Engine in 2005 SRT6 Crossfire Vehicles. |
 |
| Drawer |
1 |
|
| Application |
9-831 ENGINE
|
|

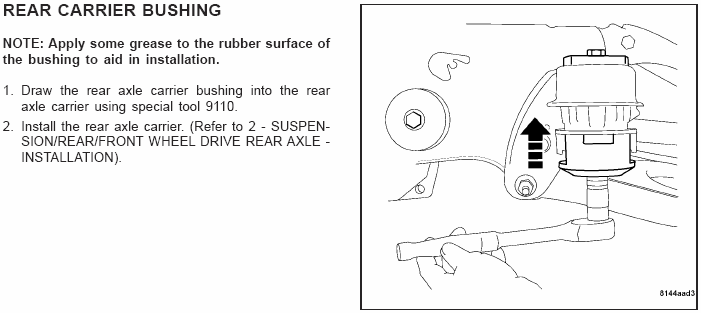

Rear Axle and Suspension

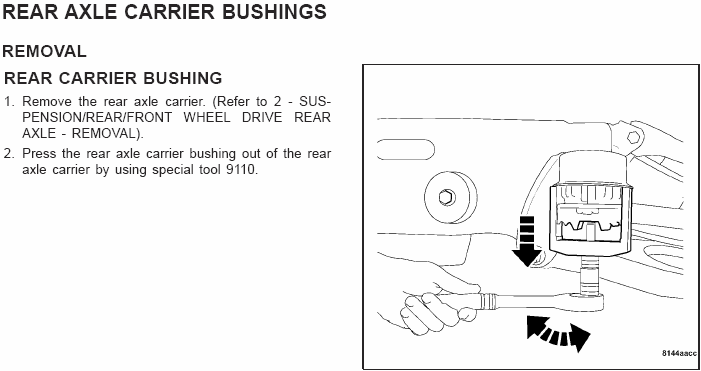

| Tool Number | 9110 | |
| Price (USD) | $336.51 | |
| Tool Name | REMOVER/INSTALLER, BUSHING | |
| Description | This special tool is required while servicing the Rear Cradle Bushings on Crossfire vehicles. 2004 thru Current |
 |
| Drawer |
1 |
|
| Application |
2-97 Rear Suspension
2-99 Rear Suspension
|
|

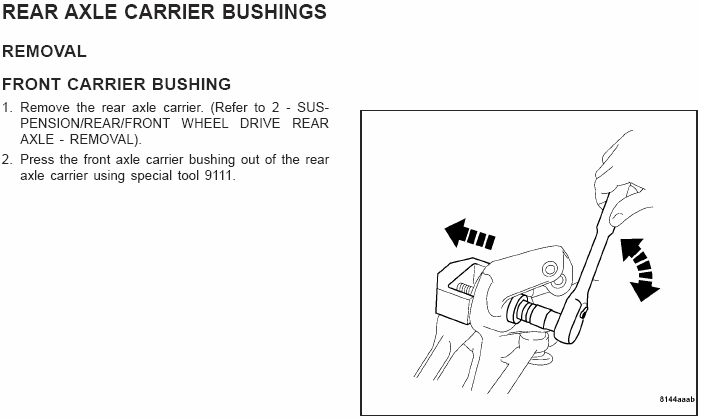

Rear Axle and Suspension
| Tool Number | 9111 | |
| Price (USD) | $157.43 | |
| Tool Name | REMOVER/INSTALLER, BUSHING | |
| Description | Use this special tool while servicing the Front Cradle Bushings on Crossfire vehicles. 2004 thru Current |
 |
| Drawer |
1 |
|
| Application |
2-97 Rear Suspension
2-99 Rear Suspension
|
|
Engine
| Tool Number | 9112 | |
| Price (USD) | $44.89 | |
| Tool Name | ADAPTER, OIL PRESSURE | |
| Description | This special adapter is used with the C-3292A Pressure Gauge during engine oil pressure diagnostics on Crossfire vehicles. 2004 thru Current |
 |
| Drawer |
1 |
|
Rear Axle and Suspension

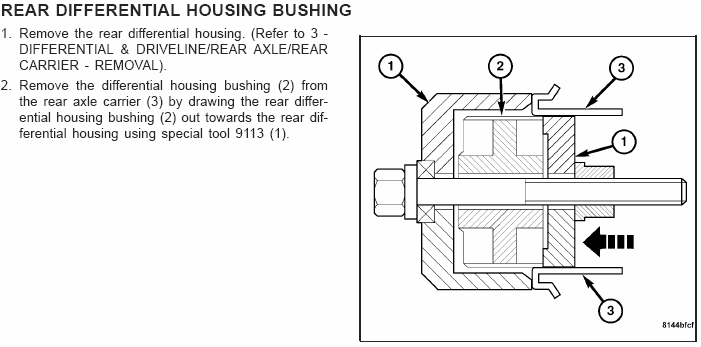

| Tool Number | 9113 | |
| Price (USD) | $181.17 | |
| Tool Name | REMOVER/INSTALLER, BUSHING | |
| Description | This special tool must be used to remove and install the Rear Differential Mounting Bushing on Crossfire Vehicles. 2004 thru Current |
 |
| Drawer |
1 |
|
| Application |
2-98 Rear Suspension
|
|
Manual Transmission, Rear Wheel Drive
| Tool Number | 9120 | |
| Price (USD) | $27.95 | |
| Tool Name | ALIGNMENT TOOL | |
| Description | This special tool is used to ensure that the shift Lever is properly aligned in the Manual Transmission in Crossfire Vehicles. |
 |
| Drawer |
4 |
|
| Application |
21-389 Manual Transmission Service Information
|
|
Manual Transmission, Rear Wheel Drive

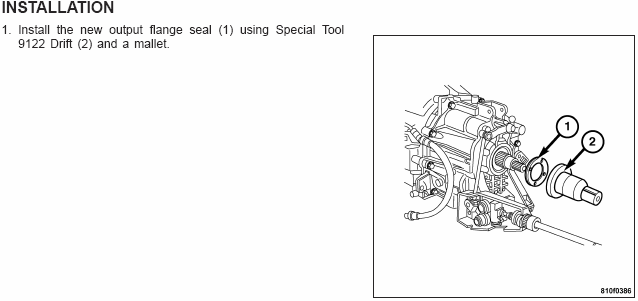

| Tool Number | 9122 | |
| Price (USD) | $46.89 | |
| Tool Name | PUNCH, DRIFT | |
| Description | Install the Output Shaft Seal to its proper depth in Crossfire Vehicles equipped with a Manual Transmission. |
 |
| Drawer |
3 |
|
| Application |
21-356 Manual Transmision Service Information
|
|

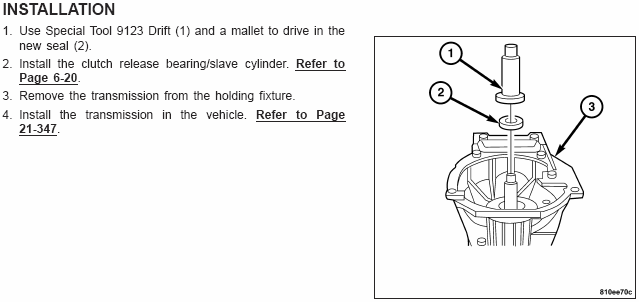

Manual Transmission, Rear Wheel Drive
| Tool Number | 9123 | |
| Price (USD) | $175.67 | |
| Tool Name | PUNCH, DRIFT | |
| Description | This special tool is used to install the Input Shaft Seal to its proper depth in Crossfire Vehicles equipped with a Manual Transmission. |
 |
| Drawer |
3 |
|
| Application |
21-360 Manual Transmission Service Information
|
|
Body
| Tool Number | 9126 | |
| Price (USD) | $38.00 | |
| Tool Name | PINS, ALIGNMENT | |
| Description | These special Alignment Pins are used to align the Convertible Top Frame to the Body when servicing the convertible top on 2005 Crossfire vehicles equipped with a Convertible Top. |
 |
| Drawer |
3 |
|
|
23-716 Convertible Top
|
||

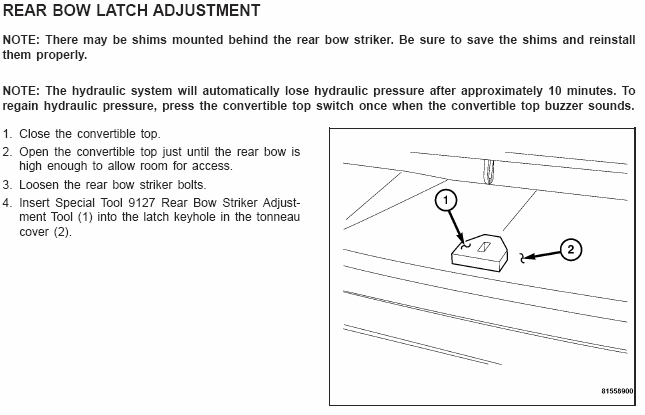

Body
| Tool Number | 9127 | |
| Price (USD) | $38.00 | |
| Tool Name | PINS, ALIGNMENT | |
| Description | This special tool is used to align the Convertible Top Rear Bow Striker with the Rear Bow Latch when the top is serviced on the 2005 through Current Crossfire Convertible. |
 |
| Drawer |
3 |
|
| Application |
23-620 Convertible Top
|
|
Front Axle & Front Suspension
| Tool Number | 9150 | |
| Price (USD) | $900.00 | |
| Tool Name | COMPRESSOR, SPRING | |
| Description | This special tool is used in conjunction with the 9152 Clamping Plates to remove and install the Front Suspension Strut Coil Springs during service procedures on Crossfire vehicles. |
 |
| Drawer |
1 |
|
| Application |

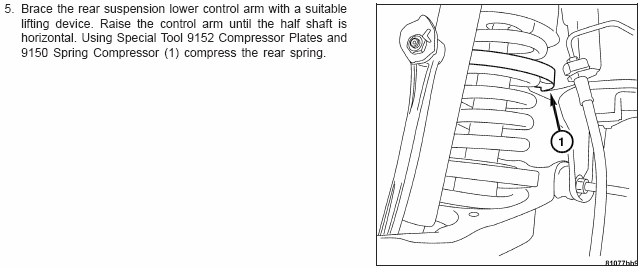

2-84 Rear Suspension
|
|
Rear Axle & Rear Suspension

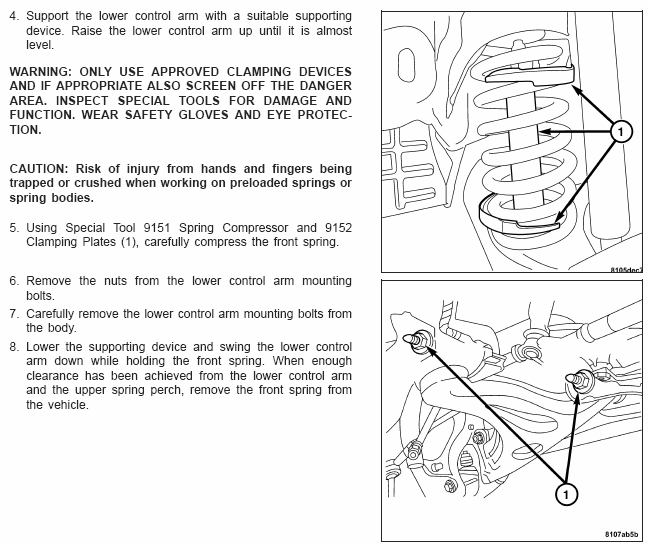

| Tool Number | 9151 | |
| Price (USD) | $900.00 | |
| Tool Name | CLAMP | |
| Description | This new special tool is used in conjunction with the 9152 Clamping Plates to remove and install the Rear Suspension Strut Coil Springs during service procedures on Crossfire vehicles. |
 |
| Drawer |
1 |
|
| Application |
2-43 Front Suspension
|
|
Front Axle & Front Suspension
| Tool Number | 9152 | |
| Price (USD) | $340.00 | |
| Tool Name | PLATES, CLAMPING | |
| Description | These special Clamping Plates are used with the 9150 & 9151 Spring Compressors to service the Front and Rear Springs on Crossfire vehicles. |
 |
| Drawer |
1 |
|
| Application |
2-43 Front Suspension
2-84 Rear Suspension
|
|

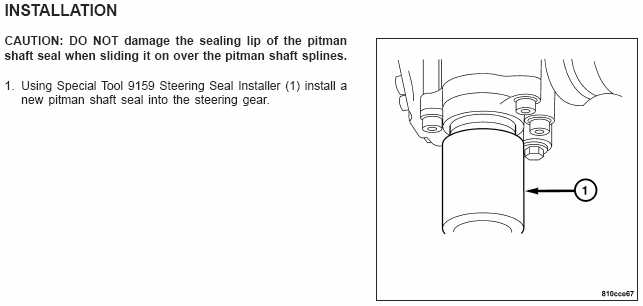

Steering
| Tool Number | 9159 | |
| Price (USD) | $100.67 | |
| Tool Name | SEAL INSTALLER | |
| Description | Use this tool to install the Steering Gear Pitman Shaft Seal to its proper depth in Crossfire Vehicles. |
 |
| Drawer |
1 |
|
| Application |
19-39 Steering Gear
|
|
Front Axle & Front Suspension

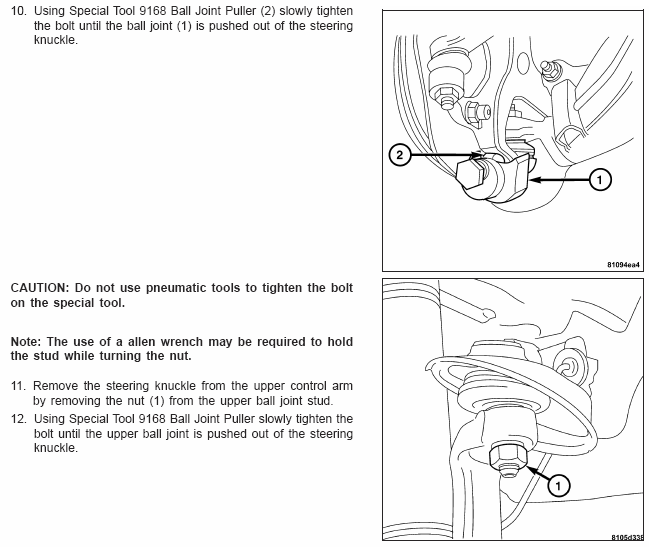

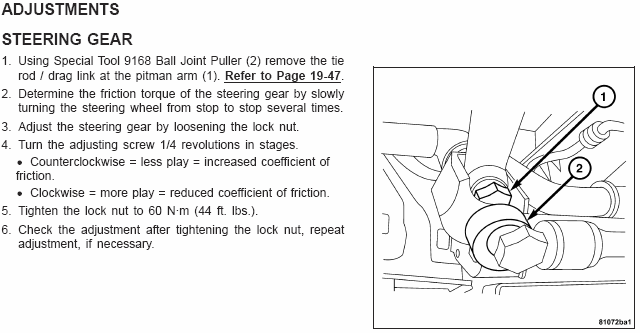

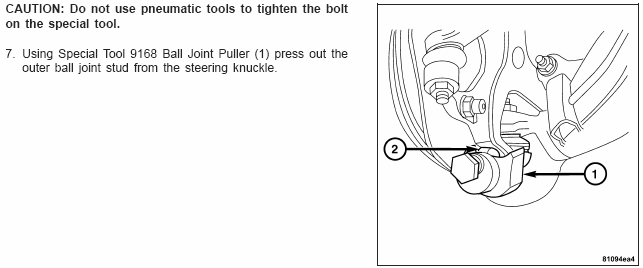

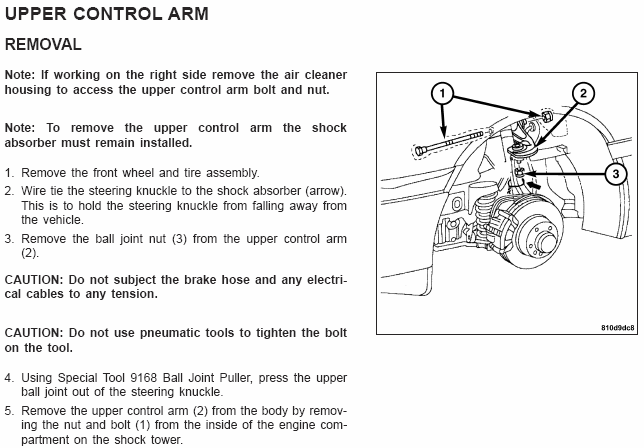

| Tool Number | 9168 | |
| Price (USD) | $102.00 | |
| Tool Name | REMOVER, BALL JOINT | |
| Description | This special tool must be used to separate the Ball Joint from the Upper Control Arm on Crossfire Vehicle. |
 |
| Drawer |
1 |
|
| Applications |
2-17 Front Suspension
2-19 Front Suspension

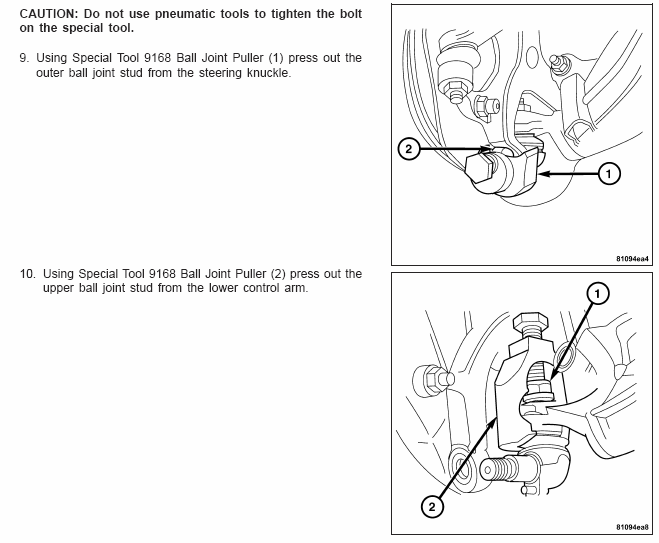

2-31 Front Suspension
2-36 Front Suspension
2-39 Front Suspension

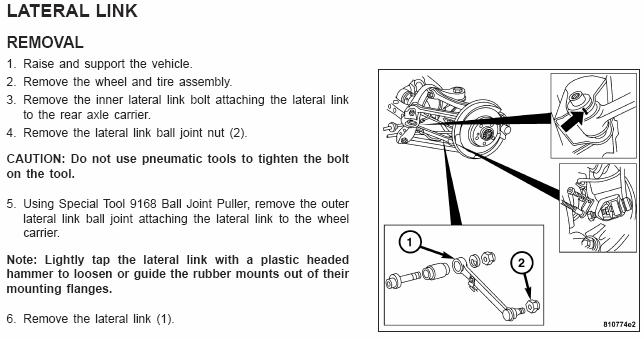

2-51 Rear Suspension
19-38 Steering Gear
19-48 Steering Linkage
19-49 Steering Linkage
|
|
Rear Axle & Rear Suspension

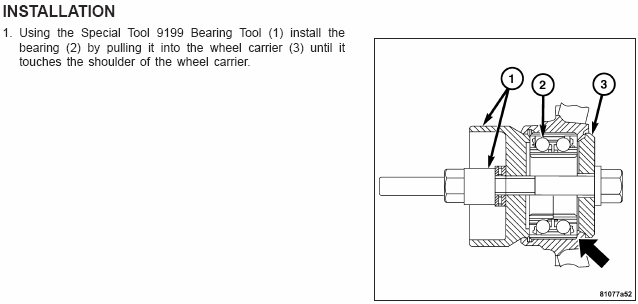

| Tool Number | 9199 | |
| Price (USD) | $376.08 | |
| Tool Name | REMOVER/INSTALLER, BEARING | |
| Description | This special tool is used to remove and install the Rear Axle Hub Bearings in Crossfire Vehicles. |
 |
| Drawer |
2 |
|
| Application |
2-70 Rear Suspension
|
|
MANUAL TRANSMISSION, REAR WHEEL DRIVE

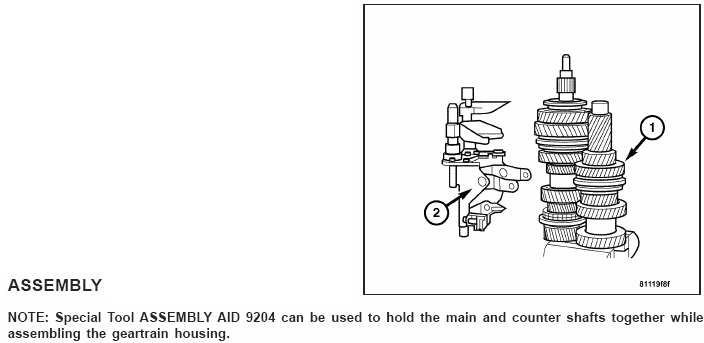

| Tool Number | 9204 | |
| Price (USD) | $163.29 | |
| Tool Name | AID, ASSEMBLY | |
| Description | This special tool is used to hold and align the Mainshaft and Countershaft during assembly of the Crossfire Manual Transmission. |
 |
| Drawer |
2 |
|
| Application |
21-428 Manual Transmission Service Information
|
|
Rear Axle & Rear Suspension

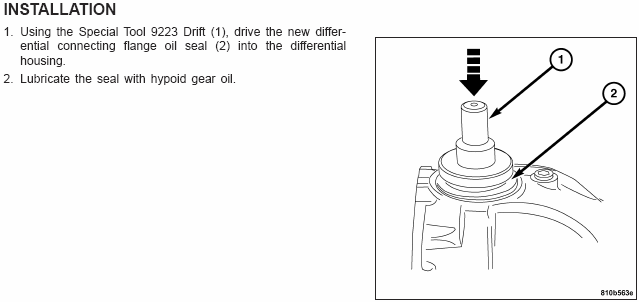

| Tool Number | 9223 | |
| Price (USD) | $163.29 | |
| Tool Name | DRIFT | |
| Description | Use this special tool to install the Differential Case Axles Seals to their proper depth on the Crossfire and LX vehicles equipped with 198 or 210 Rear Axles. |
 |
| Drawer |
3 |
|
| Application |
3-47 Rear Differential
|
|
Rear Axle & Rear Suspension

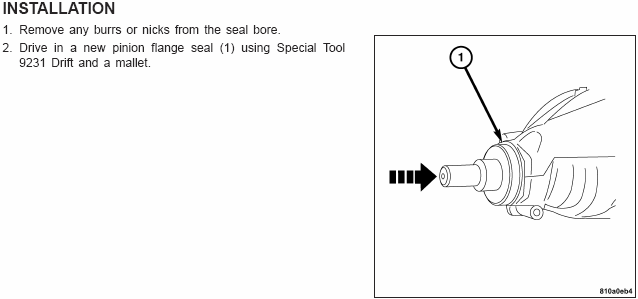

| Tool Number | 9231A | |
| Price (USD) | $53.67 | |
| Tool Name | INSTALLER, PINION OIL SEAL | |
| Description | This special tool is used to install the Pinion Seal to its proper depth on LX vehicles equipped with the 198 or 210 Rear Axle. |
 |
| Drawer |
2 |
|
| Application |
3-45 Rear Differential
|
|
Fuel System

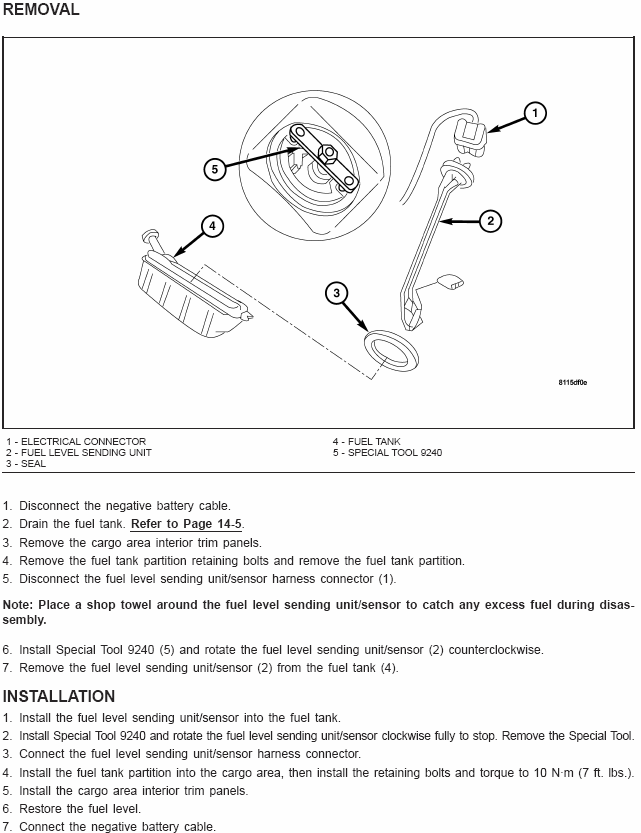

| Tool Number | 9240 | |
| Price (USD) | $83.25 | |
| Tool Name | WRENCH, PIN | |
| Description | Remove and install the fuel Tank Pump/Sender Unit from Crossfire Vehicles with this special tool. |
 |
| Drawer |
1 |
|
| Application |
14-13 Fuel Delivery
|
|
Body

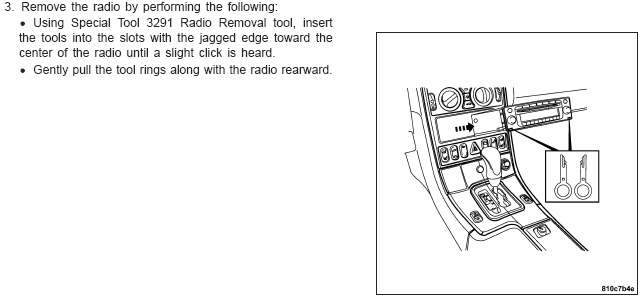

| Tool Number | 9241 | |
| Price (USD) | $12.29 | |
| Tool Name | REMOVER/INSTALLER, RADIO ASSEMBLY | |
| Description | These special tools must be used to remove or install the Radio in Crossfire and Sprinter vehicles. |
 |
| Drawer |
1 |
|
| Application |
8A-27 Audio Service Information
|
|
Automatic Transmission, Rear Wheel Drive
| Tool Number | 9287 | |
| Price (USD) | $44.44 | |
| Tool Name | INSTALLER, BEARING | |
| Description | Use this special tool to install the rear output shaft bearing into the NAG1 Automatic Transmission case. 2003 thru Current |
 |
| Drawer |
2 |
|
| Application |
21-223 Automatic NAG1 Service Information
|
|
STOW N' GO SEAT TOOL
| Tool Number | 9313 | |
| Price (USD) | $26.04 | |
| Tool Name | CLIP, SEAT ARTICULATION | |
| Description | This new special clip must be used to prevent injury and damage to the Seat Struts while removing and installing the Stow N Go Seats in 2005 Mini Vans. |
 |
| Drawer |
|
|
Automatic Transmission, Rear Wheel Drive

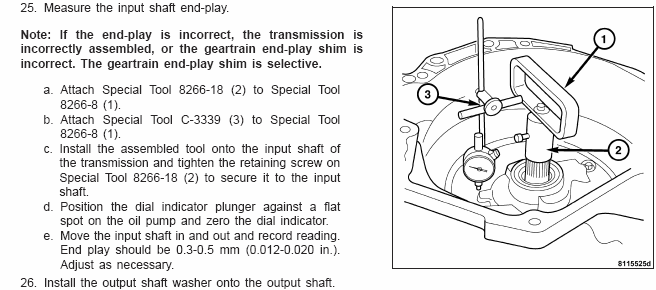

| Tool Number | 8266-18 | |
| Price (USD) | $72.80 | |
| Tool Name | SOCKET | |
| Description | This special tool is used with Handle 8266-8 and a Dial Indicator to measure the gear train end-play of the NAG1 Automatic Transmission. 2003 thru Current |
 |
| Drawer |
2 |
|
| Application |

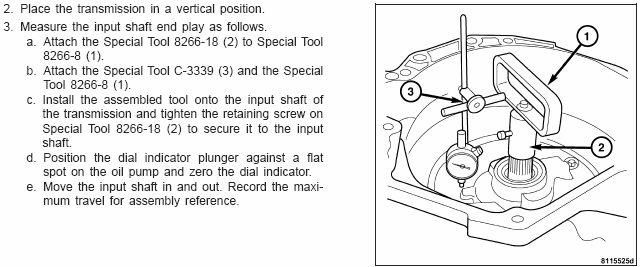

21-214 Automatic NAG1 Service Information
21-224 Automatic NAG1 Service Information
|
|
Automatic Transaxle, Front Wheel Drive
| Tool Number | 8266-8 | |
| Price (USD) | $23.32 | |
| Tool Name | HANDLE | |
| Description | Use this special tool along with End-play Adapter 8266-18 and a Dial Indicator to measure the gear train end-play of the NAG1 Automatic Transmission. Included in 8266A Kit. 2003 thru Current |
 |
| Drawer |
2 |
|
| Application |
21-214 Automatic NAG1 Service Information
21-224 Automatic NAG1 Service Information
|
|
Cooling System & A/C
| Tool Number | 8286 | |
| Price (USD) | $199.44 | |
| Tool Name | REFRACTOMETER | |
| Description | Use
this refractometer to accurately check engine coolant, and batteries
for specific gravity. A
Refractometer will test the amount of antifreeze/coolant in a
coolant mixture by measuring the |
 |
| Drawer |
|
|
| Application | 7-17 Engine | |
Automatic Transmission, Rear Wheel Drive

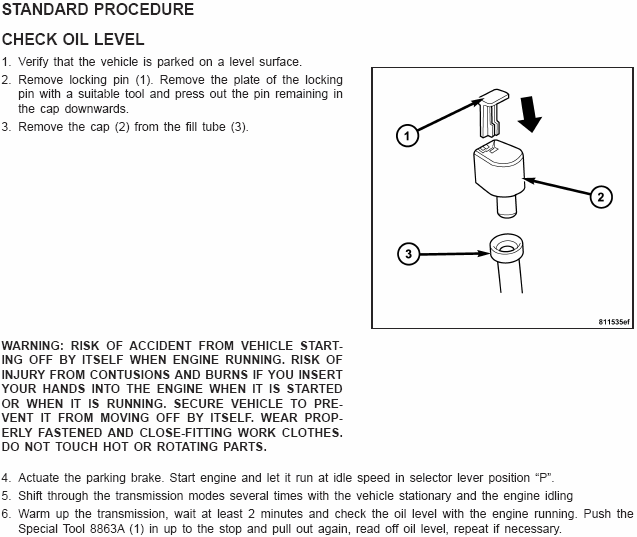

| Tool Number | 8863B | |
| Price (USD) | $58.27 | |
| Tool Name | DIPSTICK | |
| Description | This special Dip Stick must be used to ensure proper Automatic Transmission Fluid Levels in the Sprinter & Crossfire. NOTE: Consult your Service Manual for the proper fluid level checking procedures. Also see 9336 for LX Models. 2003 thru Current |
 |
| Drawer |
6 |
|
| Application |
21-229 Automatic NAG1 Service Information
21-294 Automatic NAG1 Service Information
|
|
Automatic Transmission, Rear Wheel Drive

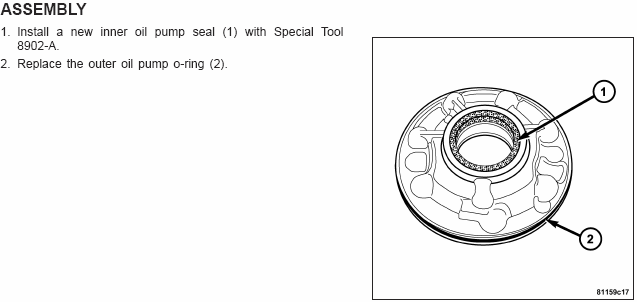

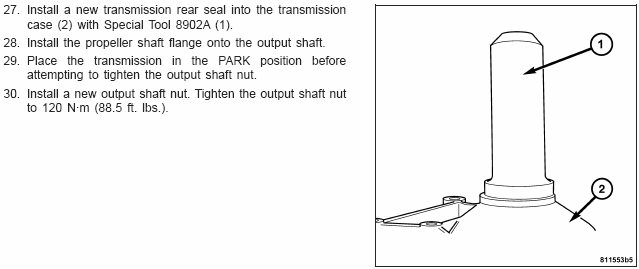

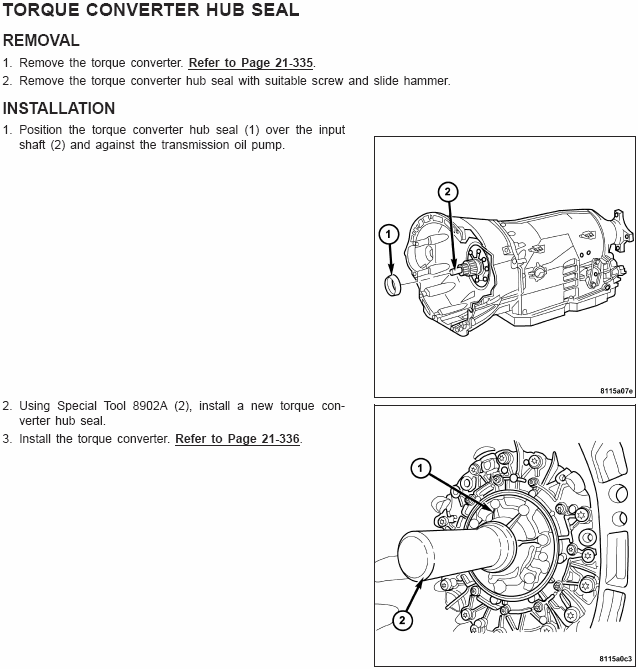

| Tool Number | 8902A | |
| Price (USD) | $53.49 | |
| Tool Name | INSTALLER, SEAL | |
| Description | Use this installer to install the Torque Converter Hub Seal and the Output Shaft Seal in the NAG1 Automatic Transmission. 2003 thru Current |
 |
| Drawer |
2 |
|
| Application |
21-313 Automatic NAG1 Service Information
21-337 Automatic NAG1 Service Information
21-225 Automatic NAG1 Service Information
|
|
Rear Axle & Rear Suspension

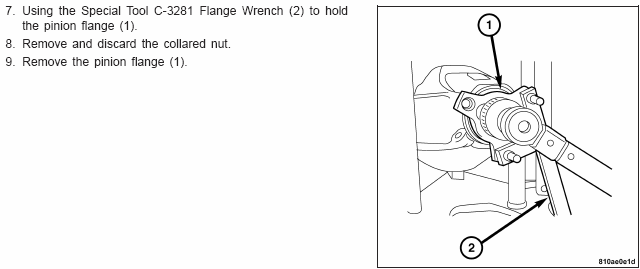

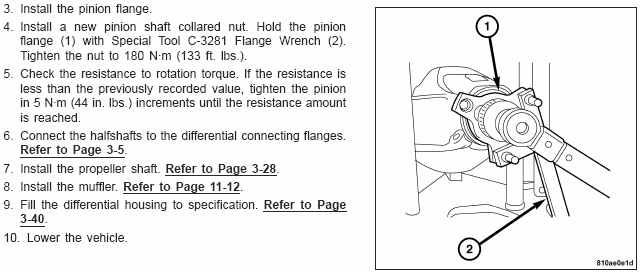

| Tool Number | C-3281 | |
| Price (USD) | $182.17 | |
| Tool Name | HOLDER, FLANGE | |
| Description | Use this special Flange Holder to hold the Pinion Flange while removing or installing the Pinion Retaining Nut during service procedures on various axles. Consult your service manual for proper applications. This tool is also used to hold the Output Shaft Flanges on Crossfire Automatic and Manual Transmissions during service procedures. |
 |
| Drawer |
6 |
|
| Application |
3-44 Rear Differential
3-45 Rear Differential
21-355 Manual Transmission
|
|
Manual Transaxle, Front Wheel Drive
| Tool Number | C-3339A | |
| Price (USD) | $437.33 | |
| Tool Name | DIAL INDICATOR SET | |
| Description | Universal clamp style dial indicator kit also includes magnetic base and is used for precise measurements during vehicle repair. Includes Magnetic Base, 25-W Wheel and 6268 Dial Indicator Tip. Comes in plastic storage case. |
 |
| Drawer |
|
|
| Application |
21-214 Automatic NAG1 Service Information
21-224 Automatic NAG1 Service Information
|
|
Engine

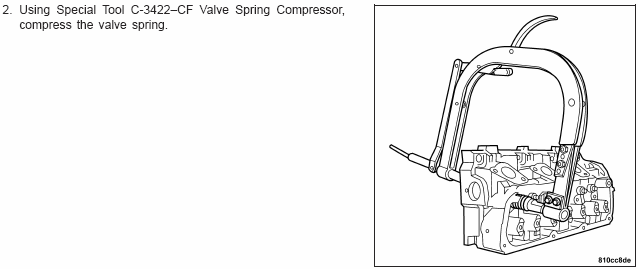

| Tool Number | C-3422CF | |
| Price (USD) | $341.16 | |
| Tool Name | COMPRESSOR, VALVE SPRING | |
| Description | This Valve Spring Compressor is used on the Crossfire 3.2 Liter Engine to service Valve Train Components with the Cylinder Head off of the engine. 2004 through Current |
 |
| Drawer |
6 |
|
| Application |
9-631 Engine Service Information
9-633 Engine Service Information
|
|
Automatic Transaxle, Front Wheel Drive
| Tool Number | C-3752 | |
| Price (USD) | $74.77 | |
| Tool Name | SLIDE HAMMERS | |
| Description | Use these Slide Hammers to remove the Front Pump from the housing in Automatic Transmissions and Transaxles. Also used with the 8870 Detent Plug Remover to remove the Detent Plug from the Manual Transmission Case during service procedures on the Crossfire Vehicles. 3/8th thread pitch. All Transmissions and Transaxles thru Current |
 |
| Drawer |
3 |
|
| Application |
21-358 Manual Transmission Service Information
|
|
Front Axle & Front Suspension

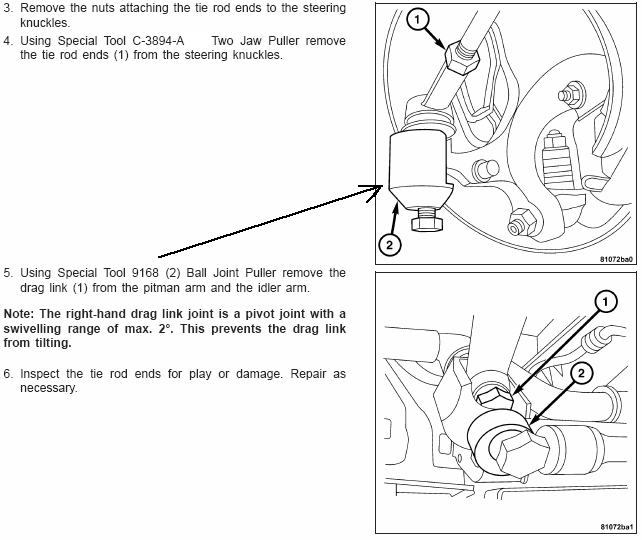

| Tool Number | C-3894-A | |
| Price (USD) | $93.31 | |
| Tool Name | PULLER,TIE ROD | |

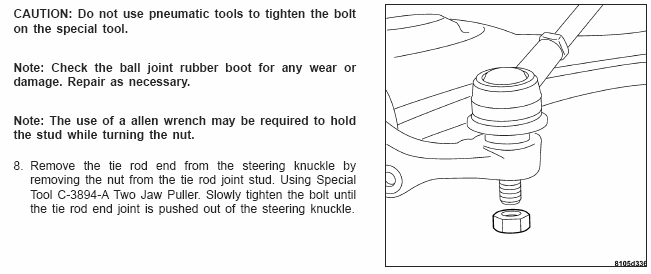

| Description | This special tool is used to separate the Tie Rod End from the Steering Knuckle on Passenger Cars, Mini-Vans, Trucks & Jeeps. Also used on Crossfire & Dodge Sprinter vehicles and used to remove the Steering Wheel from Jeep vehicles. |
 |
| Drawer |
1 |
|
| Application |
 19-48 Steering Linkage
19-49 Steering Linkage
|
|
Transfer Case
| Tool Number | C-4171 | |
| Price (USD) | $18.09 | |
| Tool Name | DRIVER HANDLE, UNIVERSAL | |
| Description | This special tool is used with various removers and installers and is designed for Quick Disconnect adapters (Non-Threaded) |
 |
| Drawer |
2 |
|
| Application |
21-225 Automatic NAG1 Service Information
|
|
Fuel System
| Tool Number | C-4799-B | |
| Price (USD) | $81.95 | |
| Tool Name | FUEL PRESSURE KIT | |
| Description | Use this kit for fuel pressure diagnostics. Includes 6433 adapter. Also see MD-998742. |
 |
| Drawer |
|
|
Rear Axle & Rear Suspension
| Tool Number | C-637CF | |
| Price (USD) | $31.89 | |
| Tool Name | SLIDE HAMMER | |
| Description | Use this special tool along with the 6790 Hub Puller to remove the rear drive axles from the Crossfire Vehicles. |
 |
| Drawer |
6 |
|
Electronic Diagnostic Tools
| Tool Number | CH-9043 | |
| Price (USD) | $305.33 | |
| Tool Name | DIAGNOSTIC CABLE | |
| Description |
 |
|
| Drawer |
|
|
Electronic Diagnostic Tools
| Tool Number | CH-9044 | |
| Price (USD) | $508.00 | |
| Tool Name | CROSSFIRE PCMCIA CARD | |
| Description |
 |
|
| Drawer |
|
|
Crossfire Vehicle Cable, J1962, 8ft
| Tool Number | CH9427 | |
| Price (USD) | $84.89 | |
| Tool Name | Crossfire Vehicle Cable, J1962, 8ft | |
| Description |
 |
|
| Drawer |
|
|
Photos,
Layout and Design © 2008 Paul M. Provencher All Rights
Reserved.
Contents of this Web Site may not be used without written permission
Visitors since
8/13/08
102.gif)
